Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 192

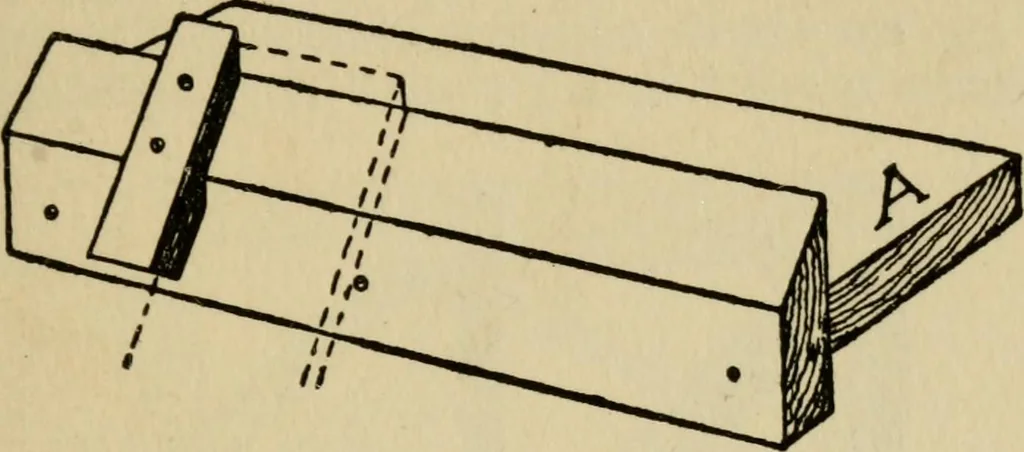

Pig. 400.—Screw Mitre Trap. one on the top of the other, the required angle is transferredthereto, and the saw kerf made. In the sketch the saw kerfsare shown at 45 degrees, right and left; and, of course,other angles and saw kerfs may be made where desired. 180 The Mitred Joint Planing.—After… … Pig. 401.—**Donkeys Ear Shooting Board. to be made. This may be accompHshed by using the planeon the shooting board, as shown at Fig. 399, and, if theworker is constantly using mitres of various angles, it is
Woodwork · Carpentry
