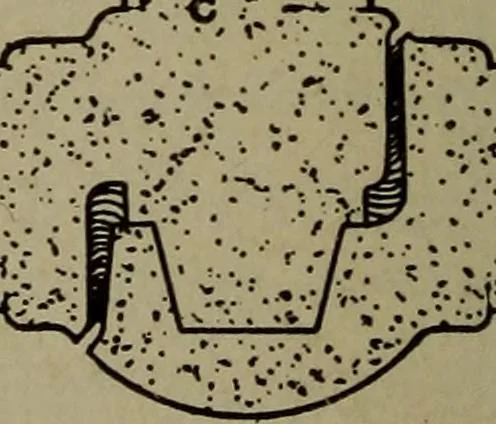

Fig. 235. Dry-Sand Cores before PastingTogether >vr..V,; y :C r -~ … -i«y-&£ Fig. 236. Sectional View of Dry-Sand Core and fragile character of wood for boxes of this kind, this core boxwill be made of iron. The wooden pattern for the metal core boxmust then have an allowance for double shrinkage, and to avoid PATTERN MAKING 133 excessive weight, the box is made…
