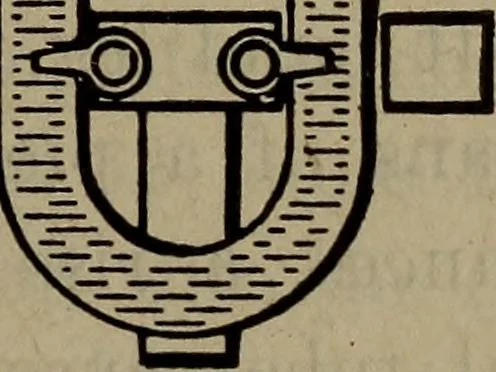

Fig. 106 Fig. 107baerus draft gauge multiplication varying from eight to ten times is obtainedunder these circumstances; in other words, with i/4-inchdraft the movement of the line of demarcation is some 2inches. The instrument is calibrated by referring it tothe ordinary U-tube gauge. 334 Steam…
