Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 153

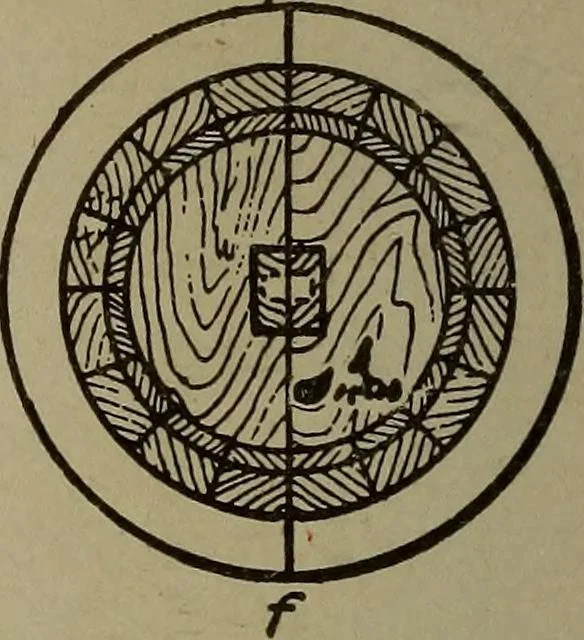

Fig. 246. Section of Cylinder Pattern Fig. 226. The flanges, however, should be built up of segments of two or three layers each, as shown in Fig. 247. After gluing up to the necessary thickness to make theflange, it is sawed in two halves,jointed, and carefully centered on awooden chuck, and…
