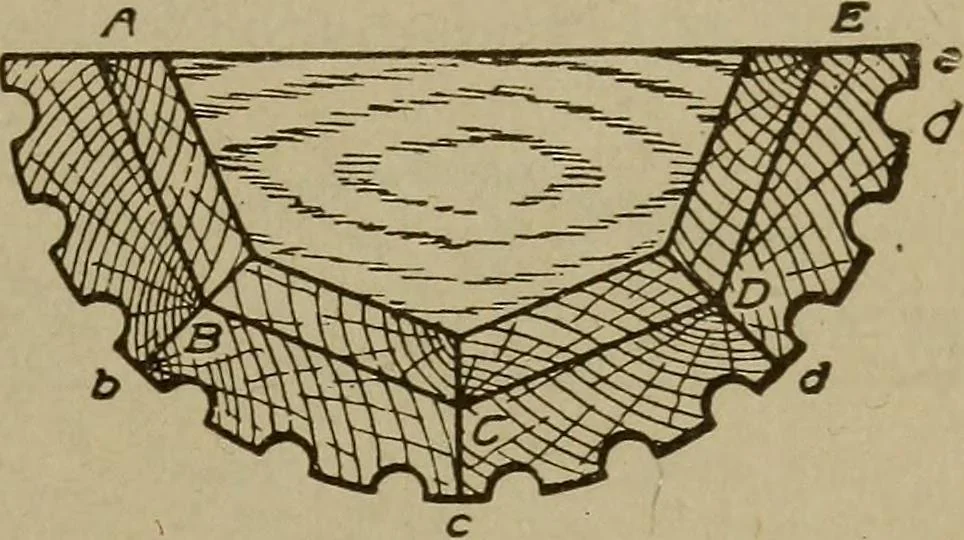

often ornamented or fluted asshown in the half section of a fluted column in Fig. 268. In alljsuckcases the body of the pattern is made octagonal, as shown byi*h£*outline ABODE. The loose pieces forming the flutes are held tothe main body by pins that stand at right angles to the line AE.After the… … Fig. 268. Section of Ornamental Col-umn Showing Loose PiecesPicked-In lifted out. These fluted sections should never be so few in numberthat they cannot be lifted out without tearing the sand. Eight ortwelve sections will be needed. Other forms of ornamentation a are put upon columns- in a similar…
