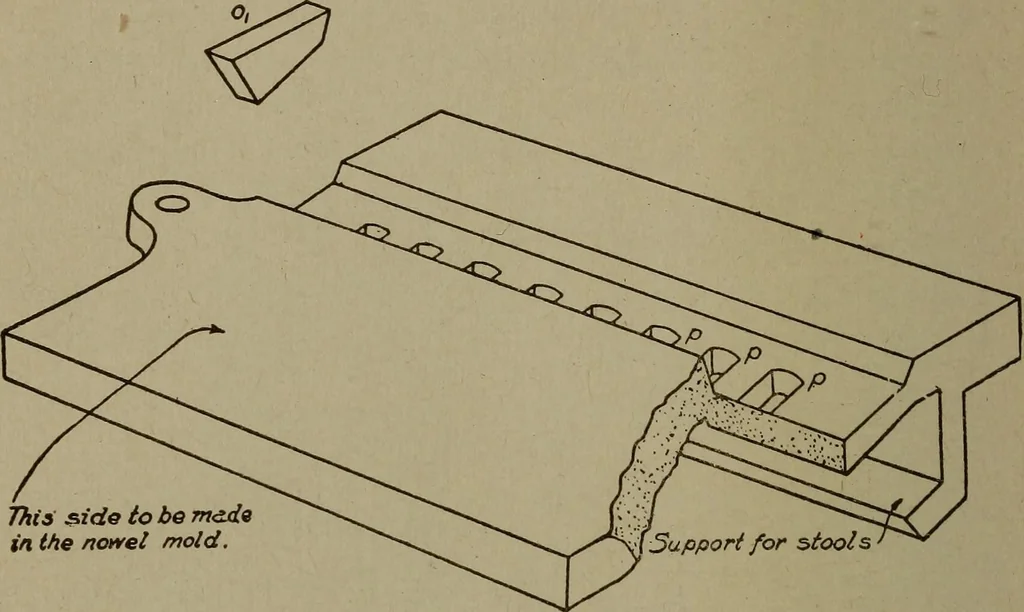

illustrate the position of the draw plate and levers when thepattern has been drawn. Stripping Plate. A perspective sketch of the stripping plateis illustrated in Fig. 314, part of the casting having been brokenaway to illustrate the position of the holes through which the patternis drawn, and Fig.… … Thii side to be mcd9in the nowel mold. Fig. 314. Diagram of Stripping Plate. One End Broken to Show Holes throughWhich Pattern Is Drawn Co/Je core print. The pattern parts onthis line.
