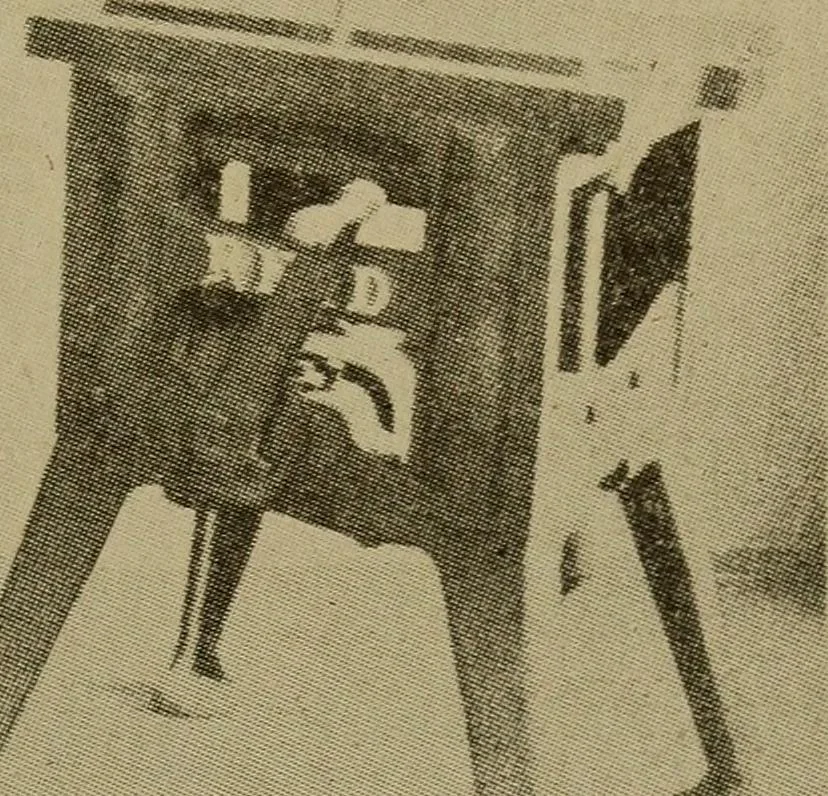

Fig. 344. Same Machines as Fig. 342, with Patterns Drawn draws the patterns c and Ci through the stripping plate b, and thedrag mold is completed. The pattern c2 is not drawn throughthe stripping plate, as enough draft can be given to this part toallow the mold to be easily lifted, the flask pins…
