Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 32

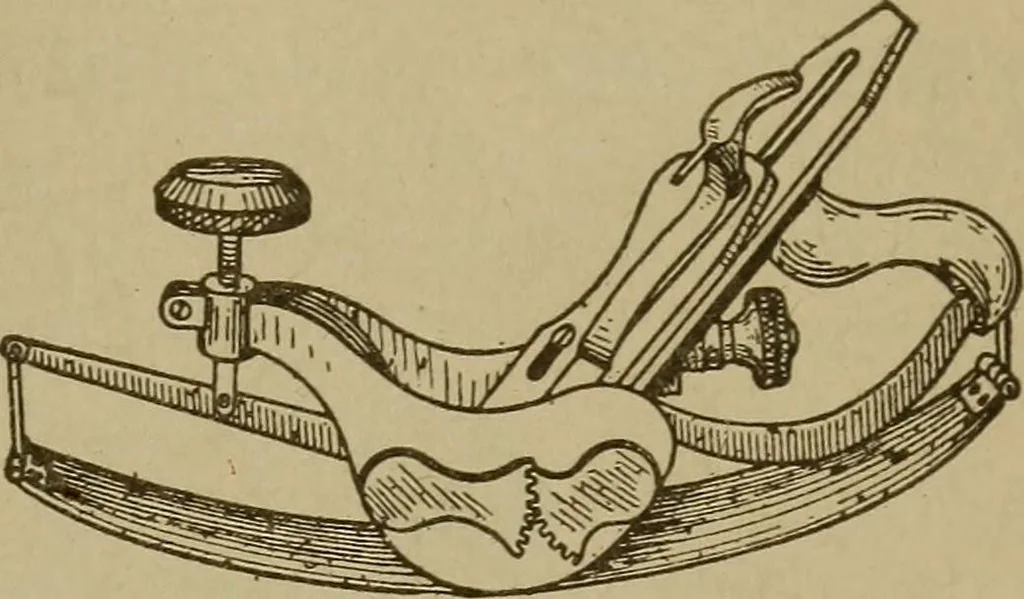

Fig. 26. Block Plane Fig. 27. Scrub Plane This plane has the advantage of being so constructed as to be heldeasily in one hand, a fact which makes it especially adaptable forfor short work. Owing to the low angle at which the cutter isplaced, it works more smoothly and easily on end wood and… … Fig. 28. Circular Plane Scrub Plane. In cases where lumber must be dressed from therough, without being first roughly dressed in a planing mill, theNo. 40 scrub plane, illustrated in Fig. 27, will be almost indispen-sable. It is 9| inches long, andhas a cutter 1\ inches wide. Thecutter is a single…
Patternmaking
