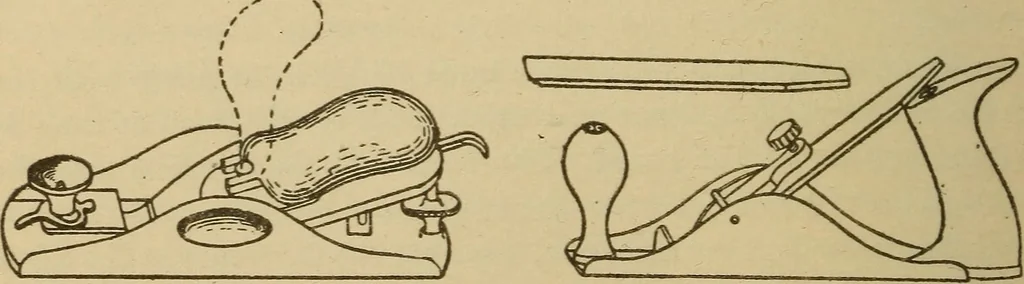

Smooth Plane plane is made in several sizes. The No. 4, which is 9 inches longand has a 2-inch cutter, is the best size for general use, particularlyfor smooth surfaces. Block Plane. Next in importance to the three planes alreadymentioned, is the block plane, illustrated in Fig. 26. The No.… … Fig. 26. Block Plane Fig. 27. Scrub Plane This plane has the advantage of being so constructed as to be heldeasily in one hand, a fact which makes it especially adaptable forfor short work. Owing to the low angle at which the cutter isplaced, it works more smoothly and easily on end wood and…
