Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 56

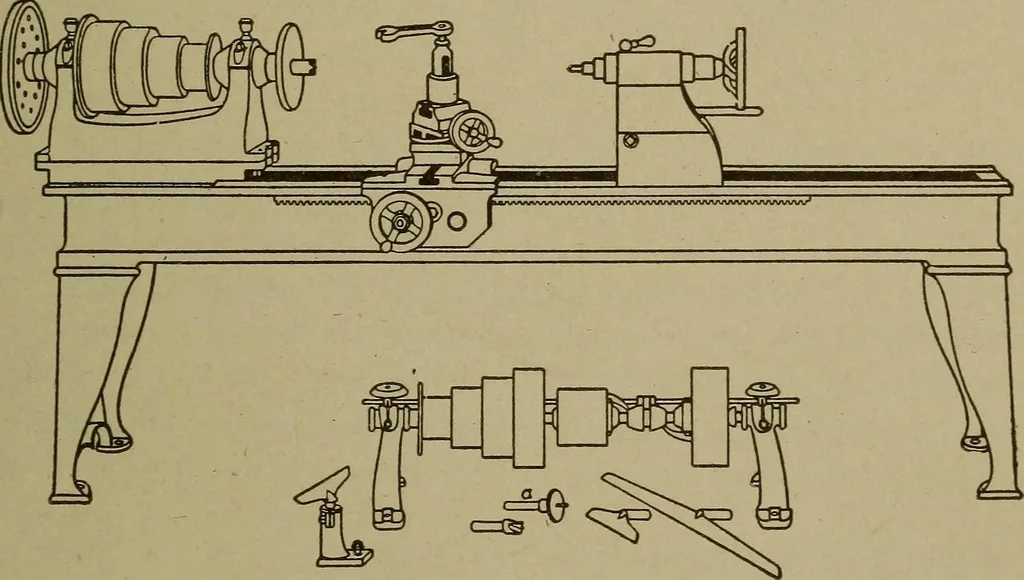

ired. When not in usethe slide rest may be removed from the lathe, and the ordinary toolrest and rest socket substituted in its place for hand-turning. Thespeed at which a lathe should be run is always indicated by themanufacturer, the countershaft usually running at a speed of 500to 550… … Fig. 87. Pattern Makers Lathe Fig. 87, and two of the iron faceplates are shown, one on each end ofthe spindle. In addition to these faceplates, which really form the baseonly for chucking the pattern, wooden chucks must be used betweenthe iron faceplate and the pattern. These wooden faceplates…
Patternmaking
