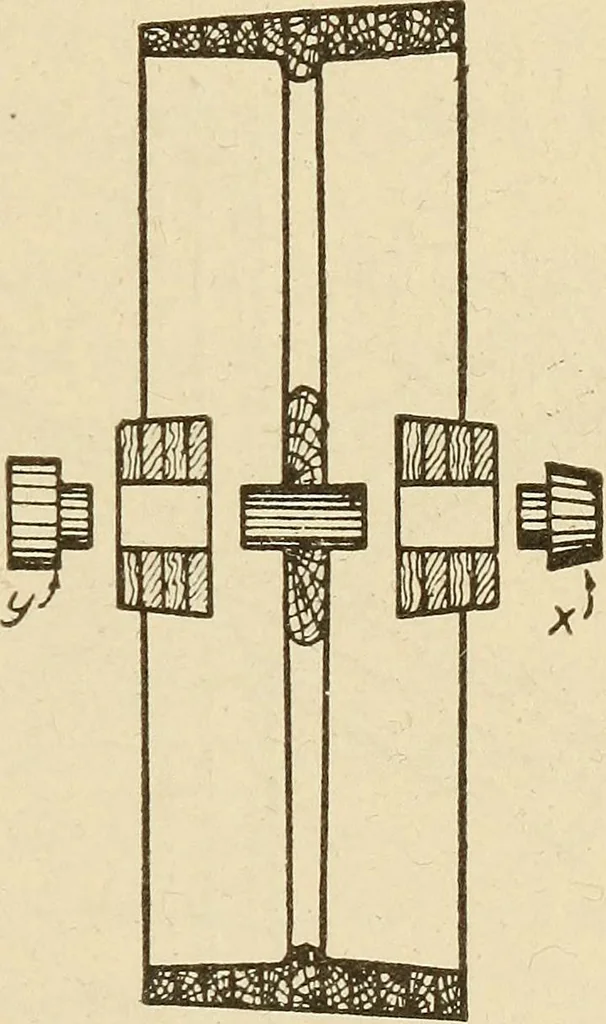

Fig. 177. Sectional View of Pattern for 20-Inch Pulley If the rim is to be finished on the face and edges only, ^ inchmust be allowed for facing, making the outside diameter of thepattern 20| inches; and the width of the face should be 6| inches.In addition to ^ inch for finish, the draft on the…
