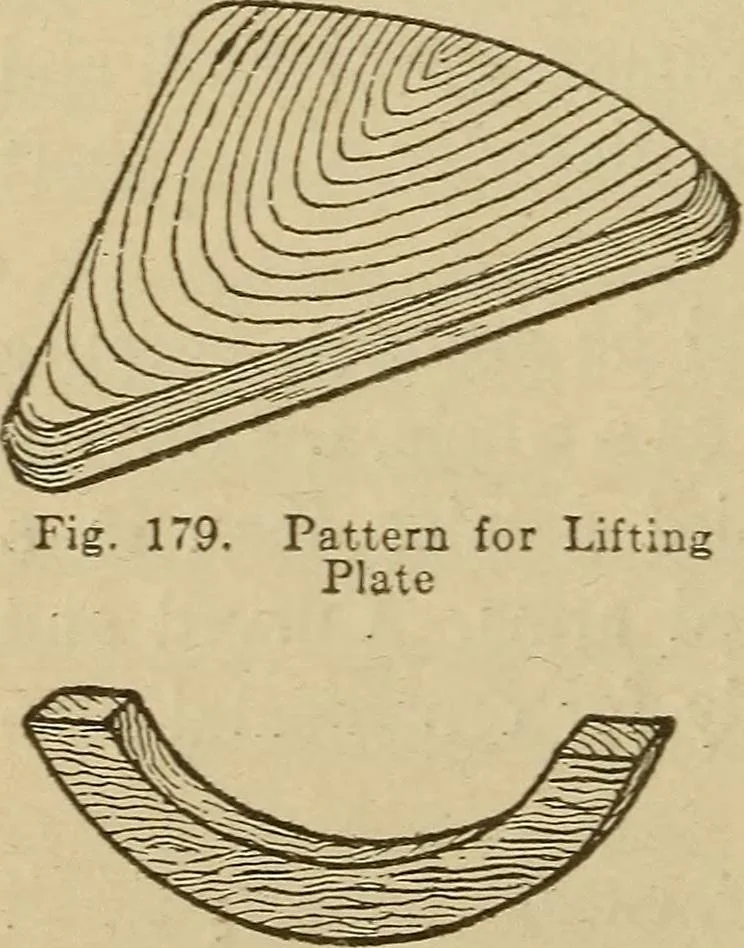

k at rim 1| inches wide at hub 1 inch thick at hub As a rule, all of the dimensions of thepulley should be furnished the patternmaker by the designer. Lifting Plate. Use. In molding pat-terns made as above, the molder willrequire a lifting plate. The lifting plateis anchored to the top of the cope… … Fig. 180. Lifting Plate Arm PATTERN MAKING 103 pieces, as shown in Fig. 179, making them about | inch smaller allaround than the space between the two adjoining arms and the insideof the rim. Chamfer one edge all around so as to leave the verticaledge about J inch thick. Band saw six pieces from…
