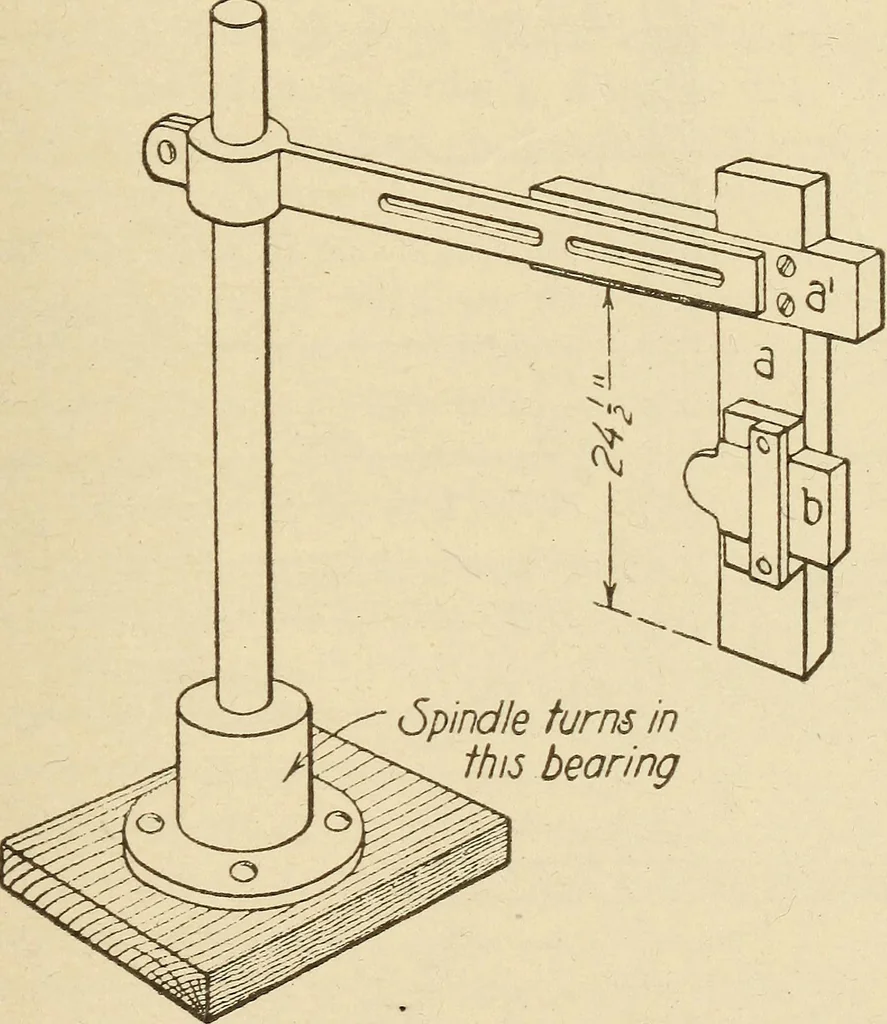

sindicated in Fig. 188, PATTERN MAKING 109 Glue l|-inch stock together, to make the hub 12^ inches indiameter by 5 inches long. Plane one end true, bore a l-irich holeat the center, and, after band sawing to a rough diameter, fastento a faceplate having a Irinch pin at its center. Turn to the… … Fig. 190. Centering Spindle and Rim Strike structed of two circular heads, nailing and gluing narrow stock-lagging—to the periphery of these heads or ends, and turning the hubafter the glue is dry, as noted above. The core prints in this case can be made of flat stock fitting a1-inch pin at center,…
