Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1921)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 186

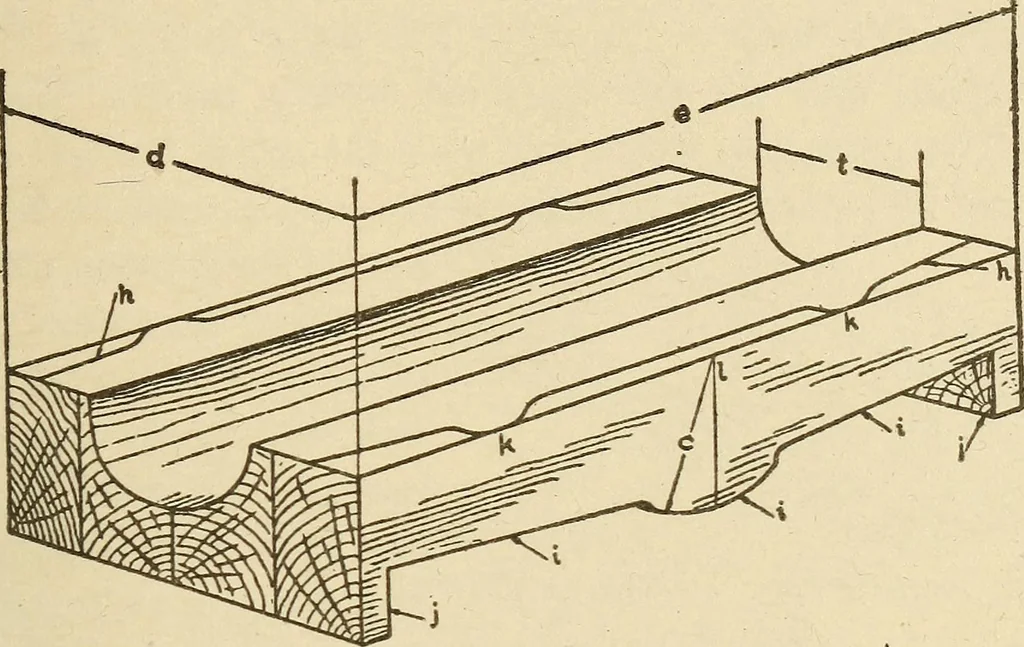

88. Working Drawing of Cap for Hanger Bearing side of each piece, and using only very dry and sound stock. Dressthe glued stock to a parallel thickness and width. The width shallbe equal to d, the height c, and the length e. The edges shall bedressed square with the two sides, and longitudinal or… … Fig. 289. Partially Completed Stock for Cap Pattern produce a layout showing the height or thickness of the pattern,as illustrated by the line i: Forming, The semicircular hole is cut out with a core-boxplane, to a diameter of t, which is larger than the shaft, as this is
Patternmaking
