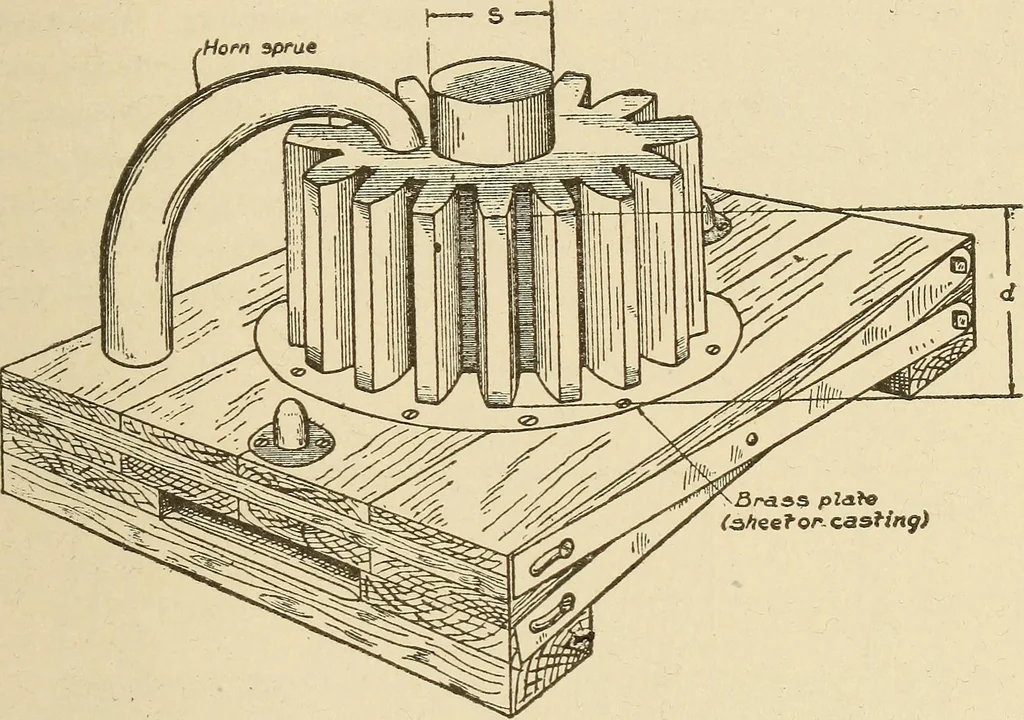

to diameter, borea 1-inch hole through it at the center, and turn on an arbor. Inthe assembly. Fig. 303, the length d shall be the sum of the faceof the gear and thickness of the stripping plate. Have the teethcut in a gear cutter. This is the same machine used to cut the teethof metal gears, and… … Fig. 302. Draw Plate for Spur-Gear Casting
