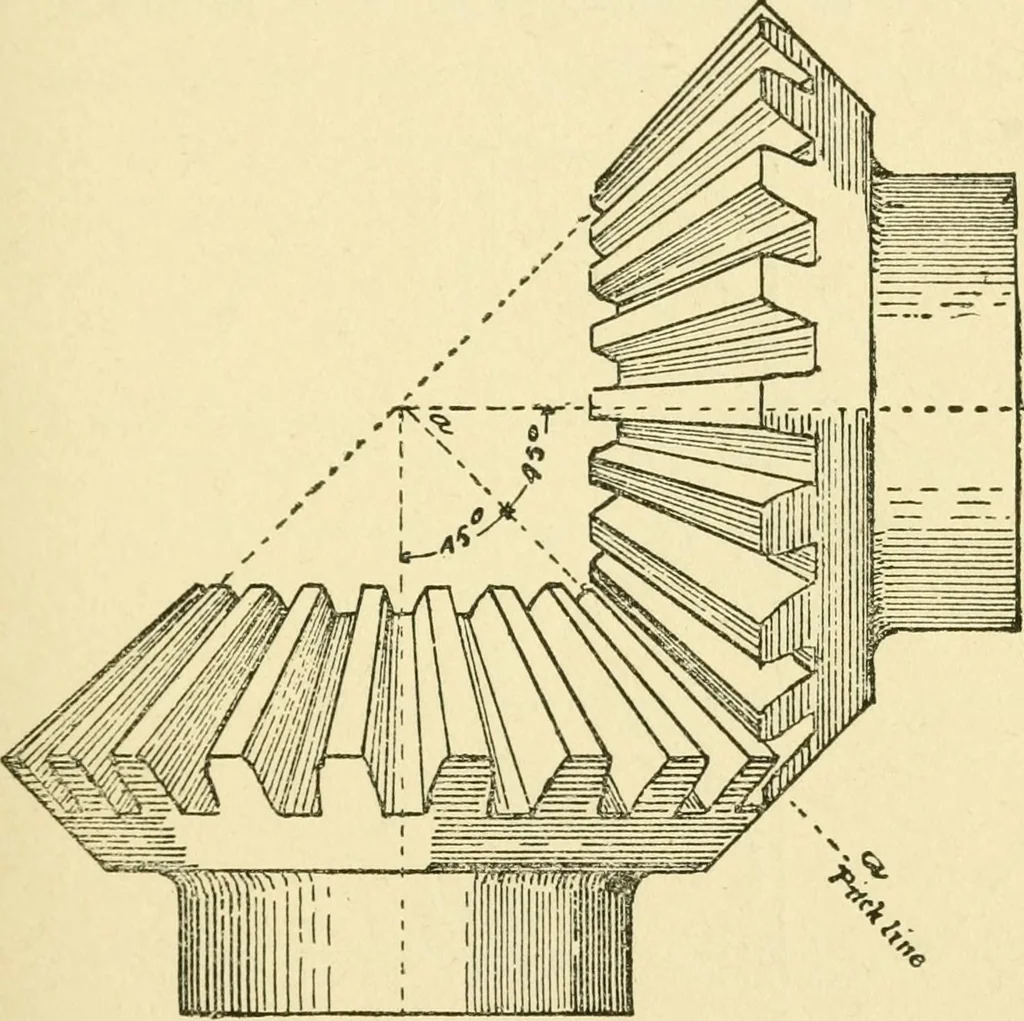

be larger thanthe other (in which case it, the pitch line, willbe any angle which the nature of the casemay require). The making of a miter orbeveled gear pattern, while not necessarily avery difficult piece of work, requires persistentcare and skill. The. pitch of a beveled gear is AND FOUNDRY… … TVg -f V of the pitch from the axis of the wheels. Tochange the angle of the axis from a right anglewould also determine the angle of the pitch line.To more fully illustrate the manner of laying outFig. 47, see Fig. 47^. Here a h and a c repre- 88 PATTERN MAKING sent the axis on which the gear…
