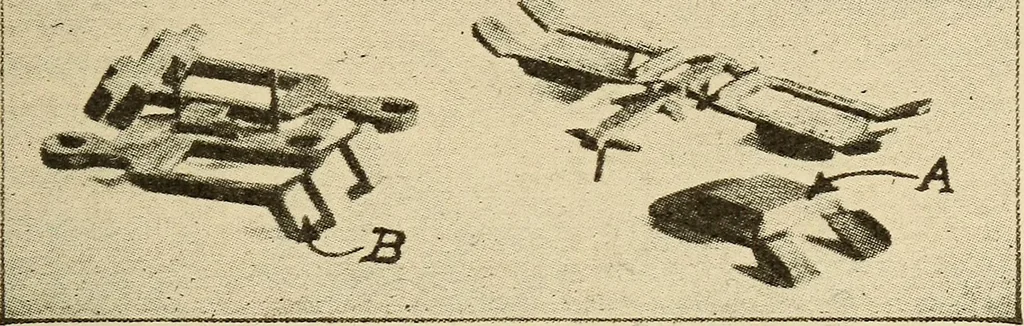

Section S-S Fig. 308. Working Drawing of Holder Frame that Requires Side Draw molding, the conditions presented by the hand-molded patternsmay be briefly considered. The working drawing, without dimen- PATTERN MAKING 183 sions, of a holder frame is illustrated in Fig. 308; and in Fig. 309is a view… … Fig. 309. Original Gated Patterns, Showing First Attempt to Increase Produc-tion. They Require Dry-Sand Core for Each Casting. With Machine-Mounted Patterns, Entire Mold la Alade in Green Sand
