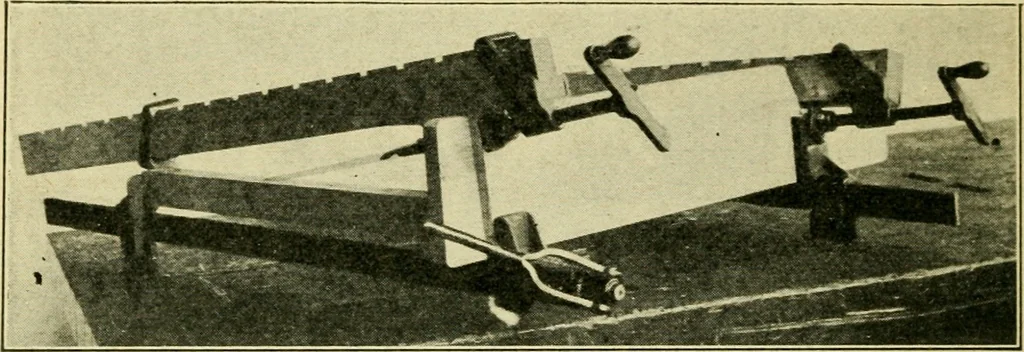

even bench top or by the floor. CLAMPING 91 In Fig. 71 is shown the most simple form ofclamping. Fig. 72 shows how clamps are placed to Fig. 71. Clamp on footstool legs pull two pieces parallel. In this case, the top end ofthe wider leg is being drawn in, and this withoutpulling any harder on the… … Fig. 73. Clamping arm of large chair is not only to keep the clamps from jamming thesurface, but also to keep them from splitting the arm.In such places, one block or strip should be used
