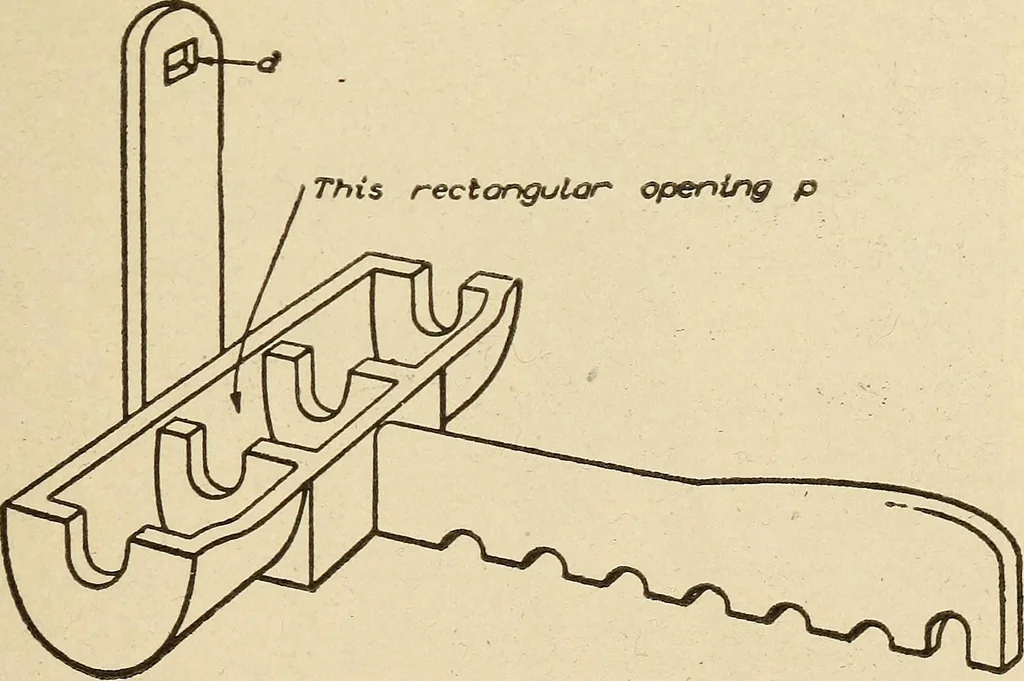

on the cope machine inFig. 329, locates the sprue. Advantages, These machines are in successful operation, theimprovements over the hand-rammed castings being more castingsper flask, doing away with the expense of making and setting thedry-sand cores, and the uniformity of the castings requiring… … Fig. 341. Sketch of Bearing-Cap Casting to mold the square hole in the upright position shown at d. Thisheel core and the setting of it was an expense; there was always anunevenness at the surface of the casting caused by the heel of thecore, which had to be ground smooth. To avoid these…
