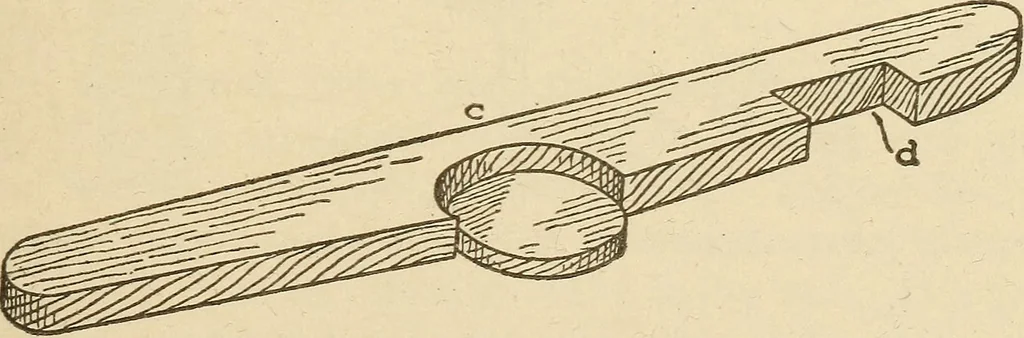

Fig. 352. Expanding or Crush-Back Motion side of the foot, and a file-finish allowance on that part which pro-trudes above the stripping plate. The master pattern with its core … Fig. 353, Master Pattern of Part c, Fig. 352 box is illustrated in Figs. 349 and 350. As before, the core-printstock should be dressed to dimension first, and that part of the pat-tern representing iron nailed and glued to it. Use the double-shrink rule or allow double shrinkage when making these…
