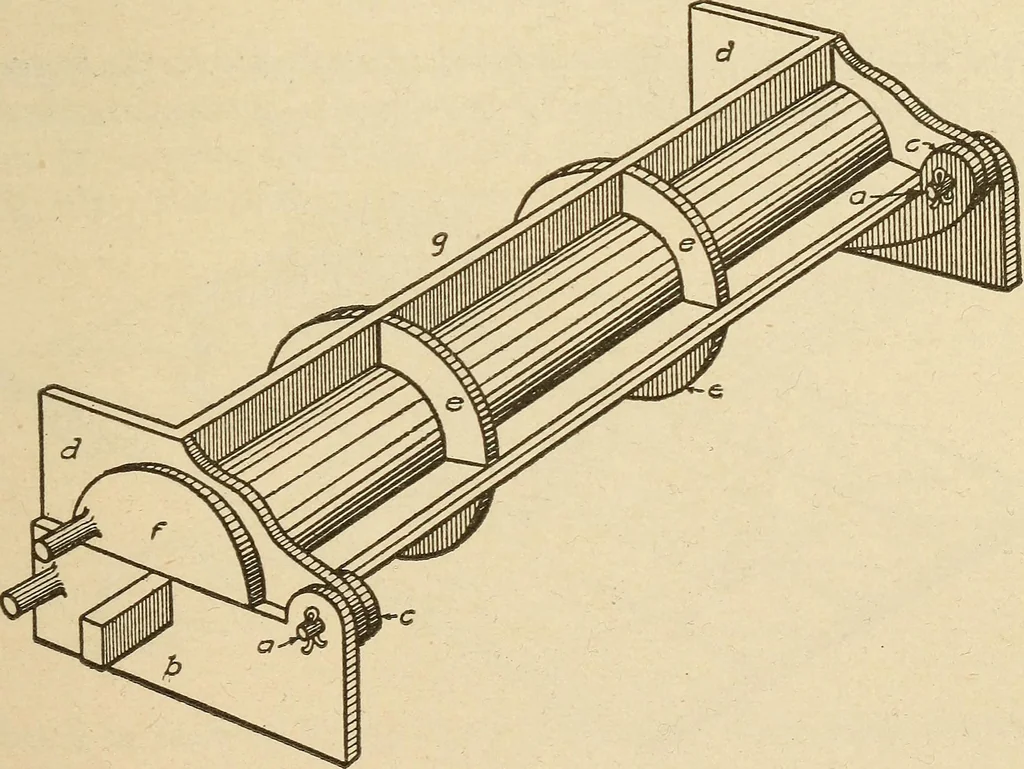

Fig. 363. Iron Core Box for Green-Sand Core … Fig. 364. Core Box Closed is placed in the drag half, the ends extending through the notchedends of the core box. Green sand is rammed in drag and cope andstruck off level with the top of each half. The core box is closed 210 PATTERN MAKING by lifting on all four handles like closing a book, print…
