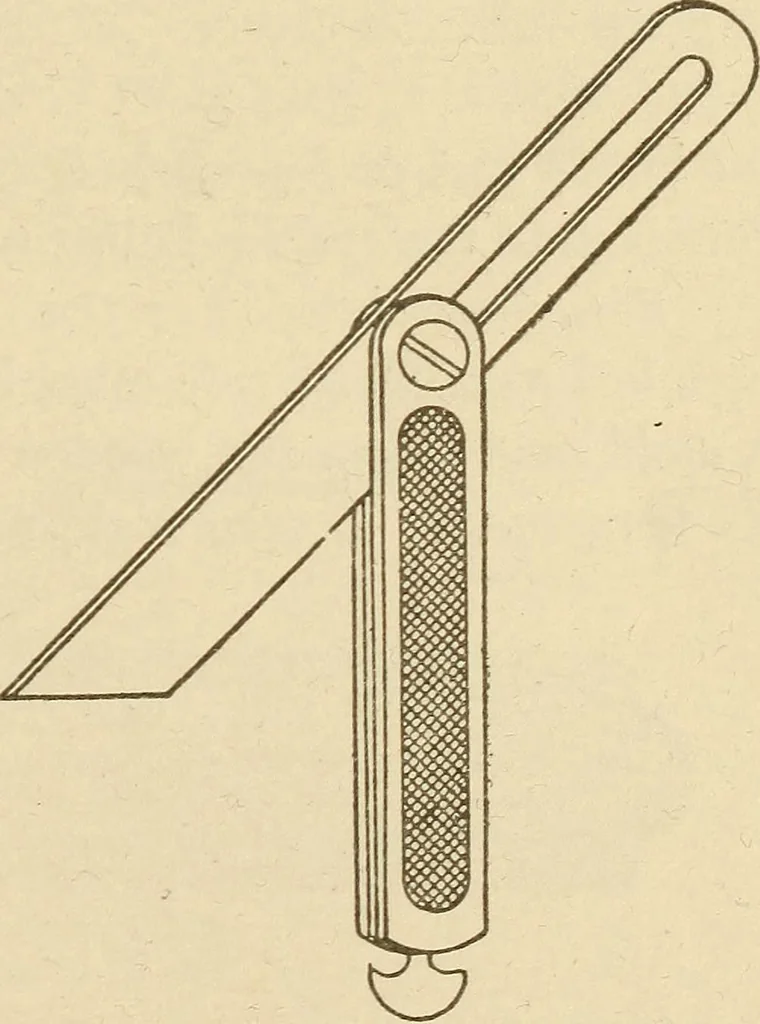

slot in at one end, whichadmits of that end being adjustedto meet the requirements of thework. Universal Type. The smallbevel illustrated in Fig. 59, like theadjustable try-square, is not anexpensive tool, and will be foundgenerally useful, especially in working the draft on patterns, and inturning… … Fig 58. Bevel 28 PATTERN MAKING One 3-inch universal, and one 8-inch or 10-inch ordinary bevel,will meet all the requirements of the pattern maker for the bevelededges and surfaces and the draft of pattern work. Rules. For all ordinary measurements, a 2-foot folding stand-ard rule, Fig. 60, will be…
