Perspective and geometrical drawing : adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thos. H. (Thomas H.) · Toronto, Ont. : W. Briggs · leaf 124

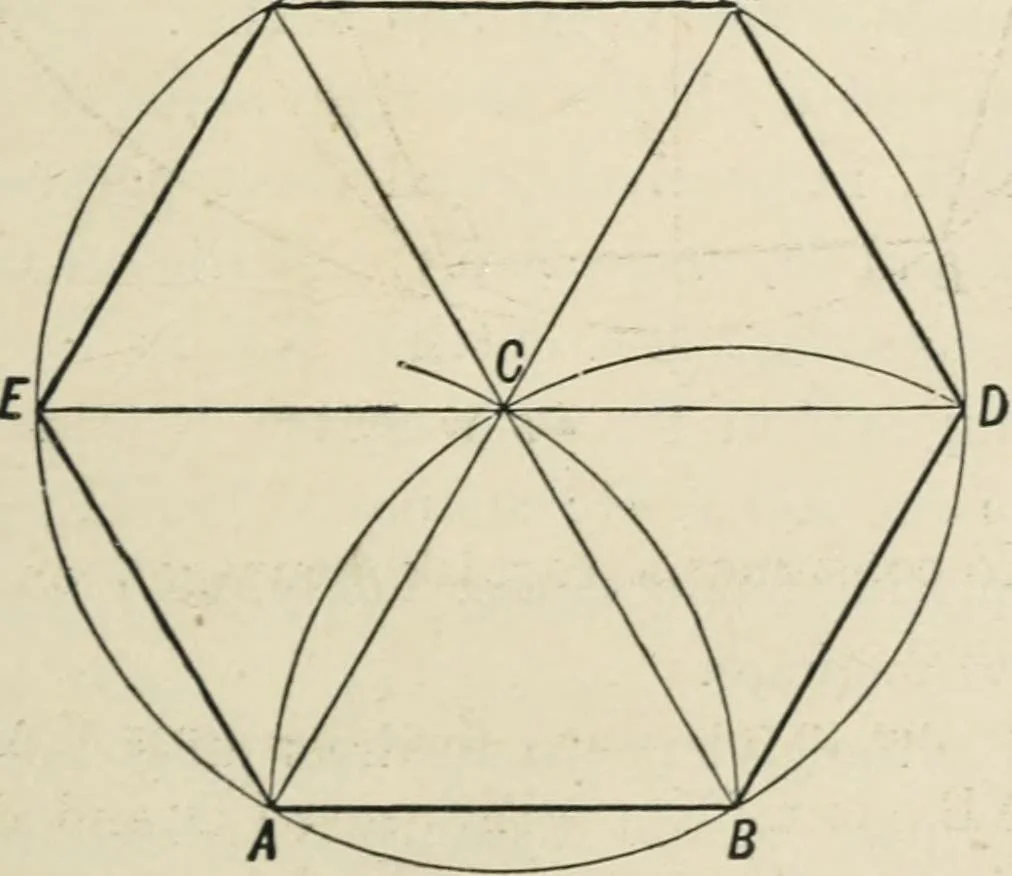

No. 20.—To construct a regular hexagon on a given straightline. … Fig. 91. 122 DRAWING. Let AB be the given line ; with centre A and distance ABdescribe arc; with centre B and distance BA, describe arccutting at C; join CA, CB. With centre C and distance CA,describe circle cutting in D, B and A ; join DC and produceto E; produce AC to G and BC to F; join AE, EF,…
Geometrical drawing · Perspective
Internet Archive · Western University Libraries · Public Domain Mark 1.0. Free to use for anything.
