Perspective and geometrical drawing adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thomas H. [from old catalog] · Toronto, W. Briggs; · leaf 126

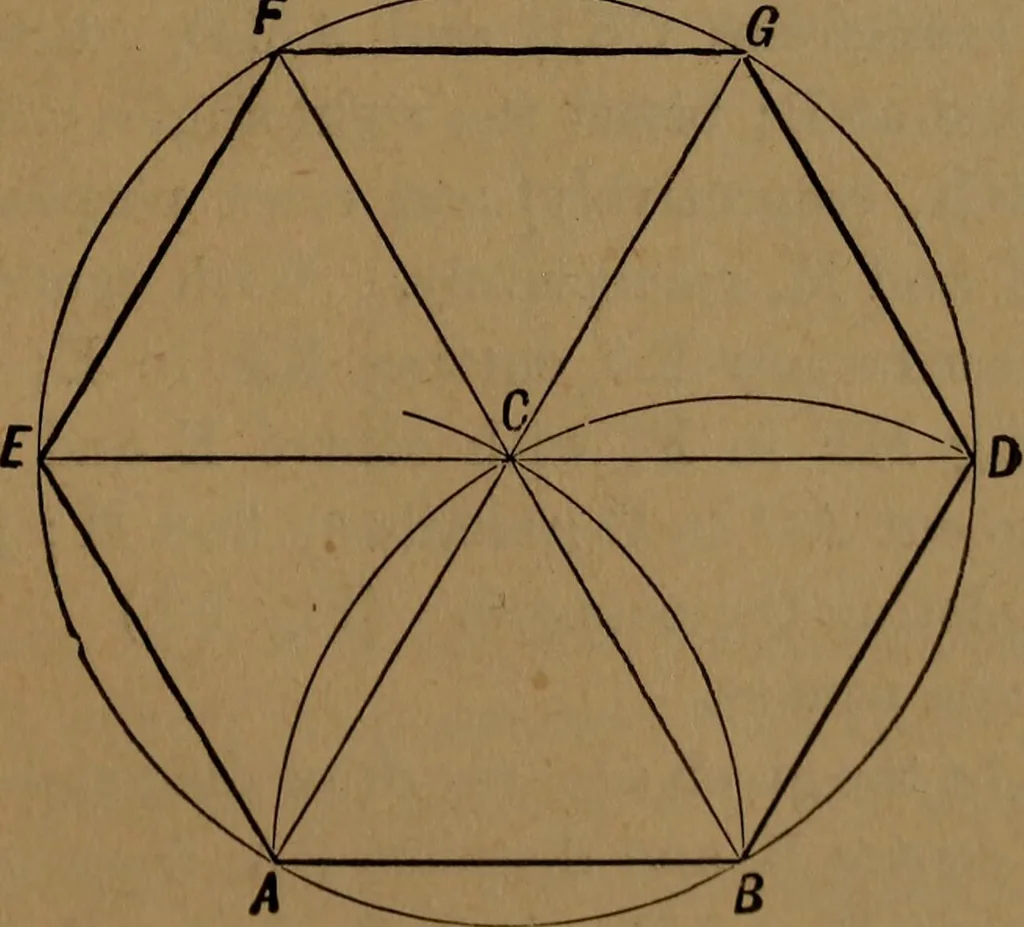

]Sfo, 20.—To construct a regular hexagon on a given straightline. … Fig. 91. 122 DRAWING. Let AB be the given line; with centre A and distance ABdescribe arc; ^rith centre B and distance BA, describe arccutting at C; join CA, CB. With centre C and distance CA,describe circle cutting in D, B and A; join DC and produceto E; produce AC to G and BC to F; join AE, EF,…
Geometrical drawing · Perspective
