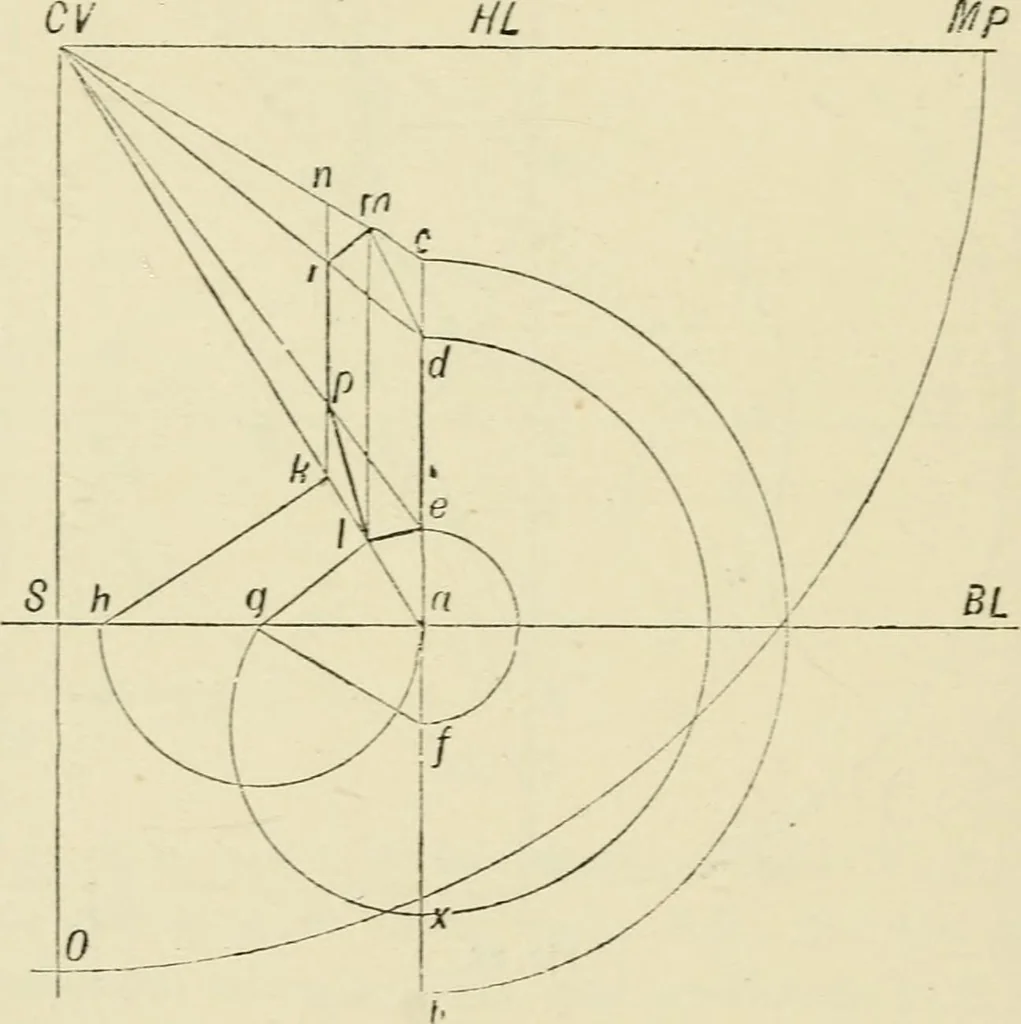

nd make it equal EF, and make 50 DRAWING. ES = EC; join N C.V.. S C.V. and EC.V, also AMP,B MP and Q MP, cutting E C.V. in K, L, M. ThroughK. L, M draw parallels to EX, cutting N C.V. in 0, P, E. ;join OS. SK, LT and TP : then OPTLKS will be hexagonrequired. Eor ES = EC and EX = EF, also KL = AB… … Fi?. 29. We proceed as follows :—After drawing H.L. and B.L. andlinding positions of O, MP and G.V., take A 4 to right of S;at A erect perpendicular AC = 4, and measure off AE = 1 andDE = 2. Produce CA to B, making AB = AC and FX = DE ;make PG = FX and GH = GA ; join HKMP, GLMP, A C.V., THE…
