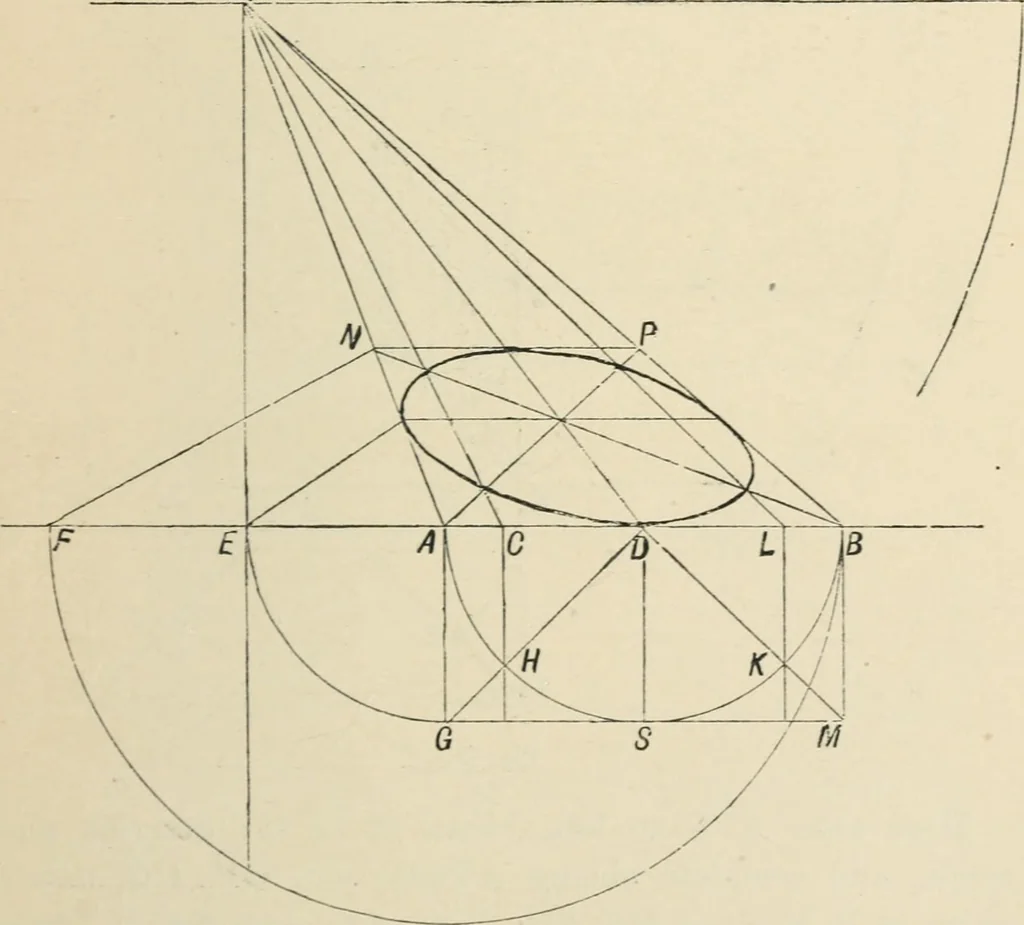

etc.; also make KR = KB and RX = BO orKB. Join X MP and R MP, and where they meet K C.V.draw parallels to KL : then bf will represent the diameterBF, and it will be easily seen that a, b, c, d, e,f, g, h will cor-respond with A, B, C, D, E, F, G, H respectively, and thecurve traced between them… … Fitf. 34. Here ED = 4, EA = 2, DB = 2. Describe semicircle ASD,draw AG and BM _[_ to AB, and draw GSM through S, fiO DRAWING. parallel to AB ; make AE = AG and AF=AB; join F MPand E MP, also A C.V., D C.V., B C.Y. Join DG and DM,cutting curve in H and K. Draw HC and KL parallel toAG; join C C.Y.…
