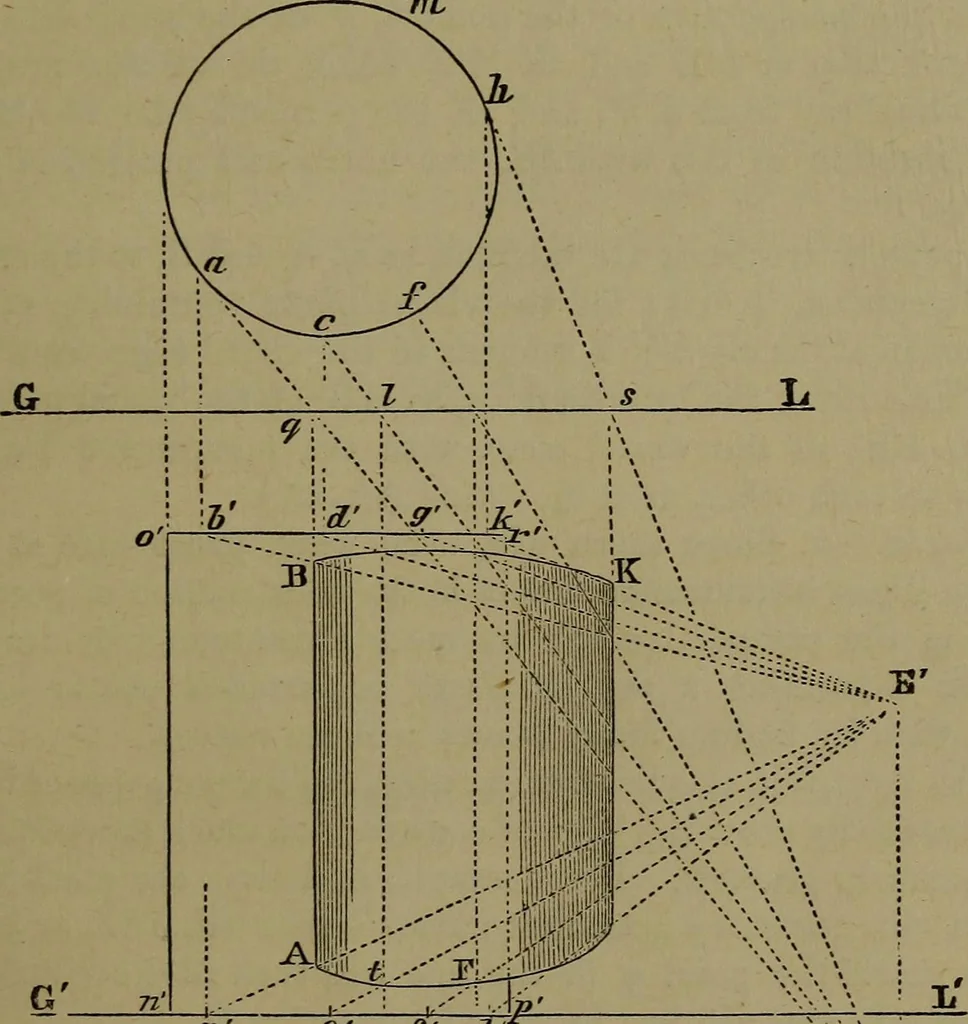

surface. The perspective of this visiblecontour or boundary, is the boundary of the required perspec-tive. (32.) Ex. 6.—To find the Perspective of a Cylinder, standingon the horizontal plane. A cylinder, seen from above, as itstands on the horizontal plane, appears only as a circle. As seenooking… … a- C £ Jt Fig. 26. Sj.; 1& This being established, EA, tangent to the horizontal projectionof the cylinder, is the horizontal trace of a vertical visual plane^tangent to the cylinder along a vertical line of its convex surface at 48 LINEAR PEKSPjSCnVE. h. Likewise, Ea is the horizontal trace of…
