Perspective and geometrical drawing : adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thos. H. (Thomas H.) · Toronto, Ont. : W. Briggs · leaf 76

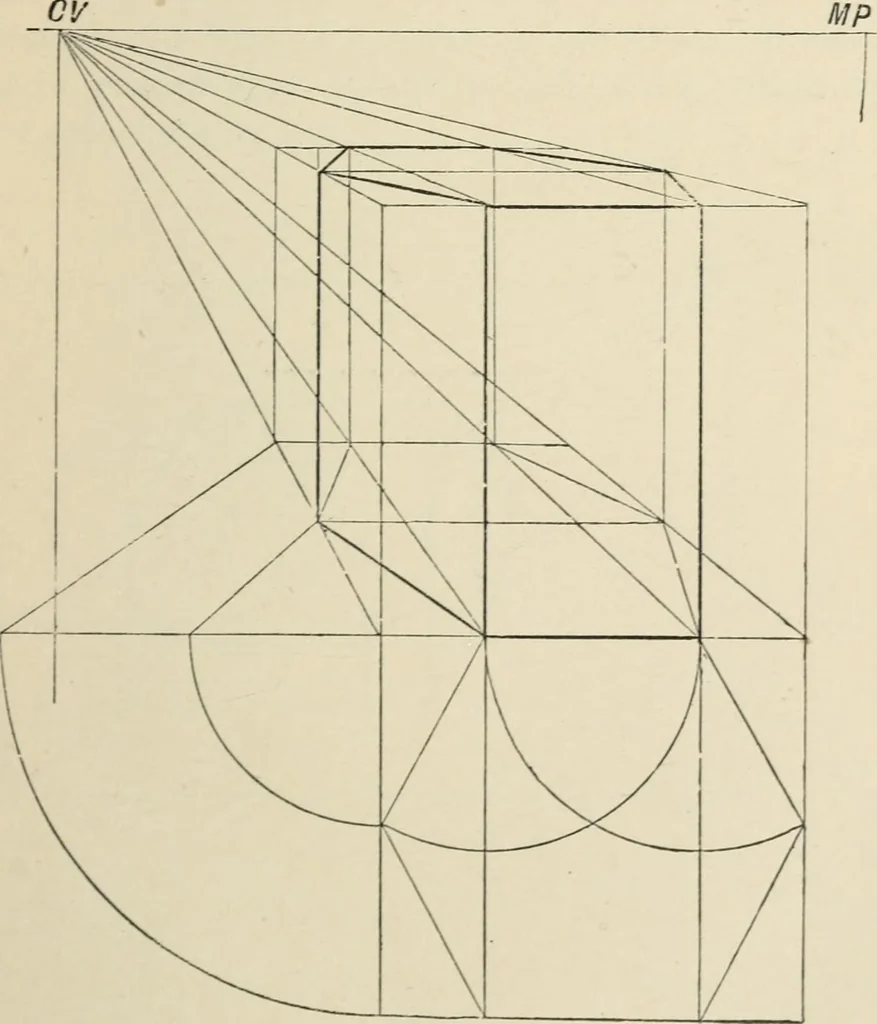

E _j_ to AB and equal to CL; simi^larly draw DF; join F C.V., E C.V. and A C.Y., also B MPand L MP ; through M draw MG parallel to AE, meetingE C.Y, in G; draw GH parallel to EF; join HD, AG andGK, completing the prism. Then AK = AB = AC = BC = 2.Hence AG = KG = AK, and GM = EA = LC = required… … Fig. 43. 74 DRAWING. Draw the plan in proper situation, as already explained;then draw the hexagons, one on G.P., the other 4 above it;then join similar angles in each, forming the required hexagon.(Fig. 43.) THE CYLINDER. 75 The Cylinder. The drawing of the cylinder differs from that of the…
Geometrical drawing · Perspective
