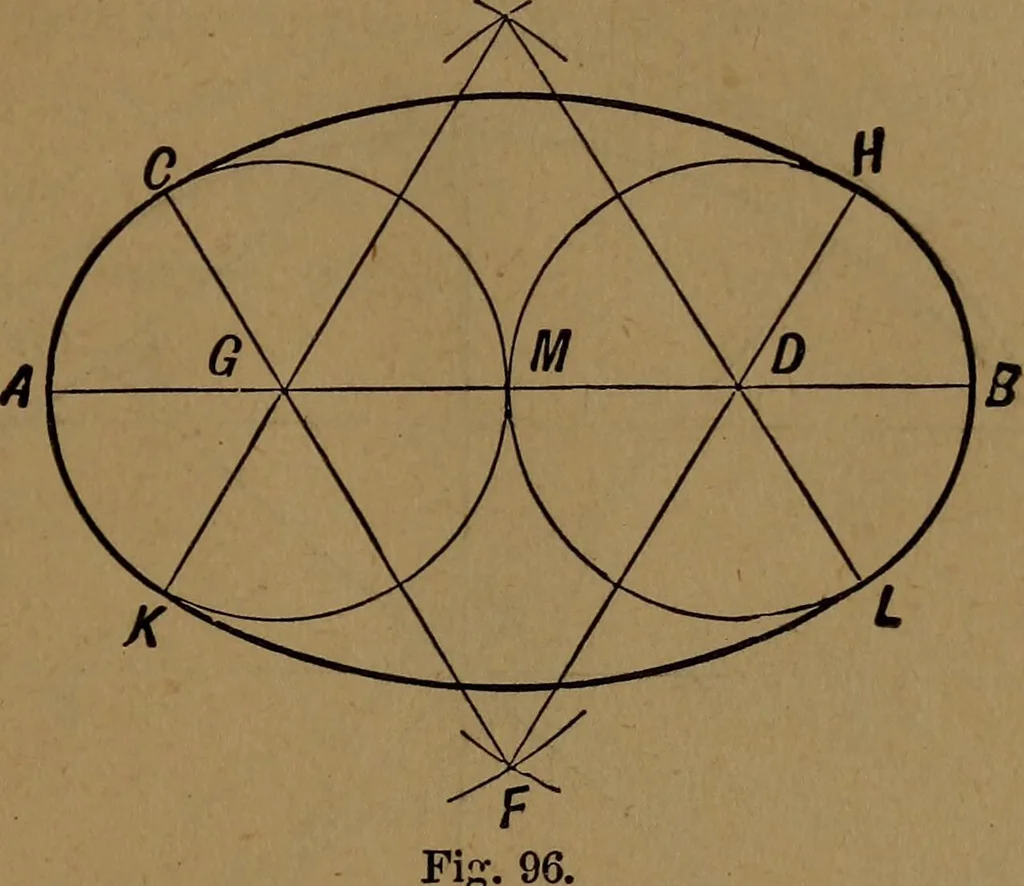

ht angles to each other, divideeach quadrant into the same number of equal parts, and joinopposite points; draw perpendiculars from the outer pointsand horizontals from the inner points to meet them; thusdraw perpendicular from H and horizontal from a to meetin 1; similarly find 2, 3, 4, etc., all… … Let AB be the given diameter; divide it into four equalparts in G, M, D; with centre D and distance^ DG describearc EF, and with centre G and same distance describe arcs tointersect in E and E. Join EG, ED, EG and ED, and producethem to the circumference in C, H, K and L respectively.Then with…
