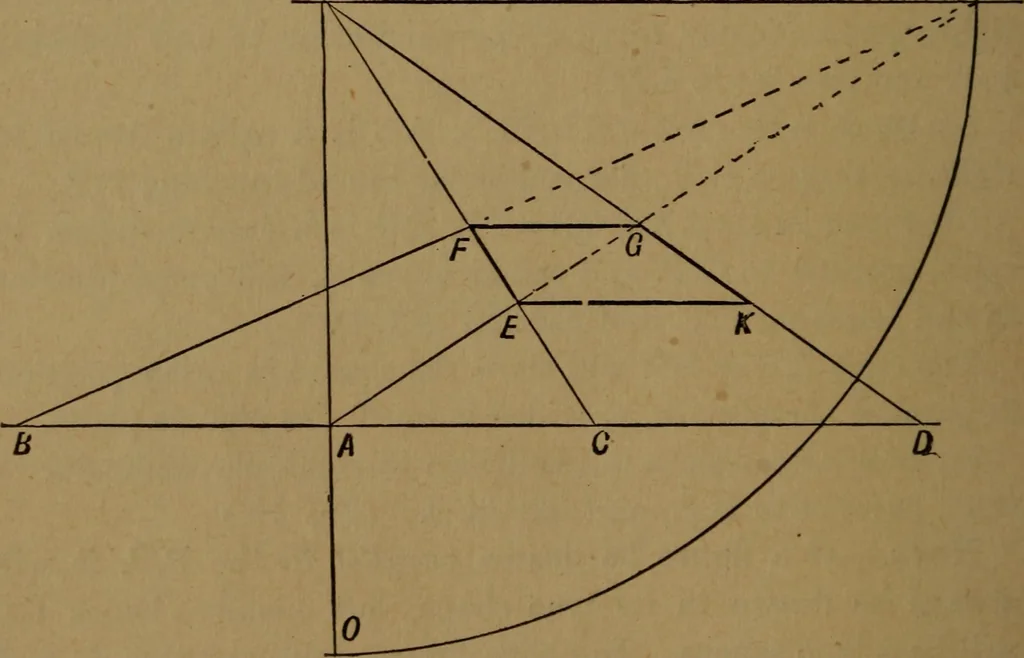

., the others are within it.It will be seen that as the squares recede they appear smaller. S2 DRAWING. Example 1.—Draw a square, side i\ i to R, 4 within,lying on G.P., _L to P.P. H = 6^ L.D. = 4, scale ^ = V. Construct figure as before. Take AC one inch (4) and CDone inch, take AB to left one… … Fig. 16. Example 2,—Draw a square, side i and 6 to left, _J_ toP.P. and 3 within it, and _|_ to G.P. and 1 above it.Other specifications as in last example. Construct figure as before. Take C \y (6) to left of A,take B V (4) to right of A, erect CE _j_ to AC at C and l^{r^) in height, and mark off*…
