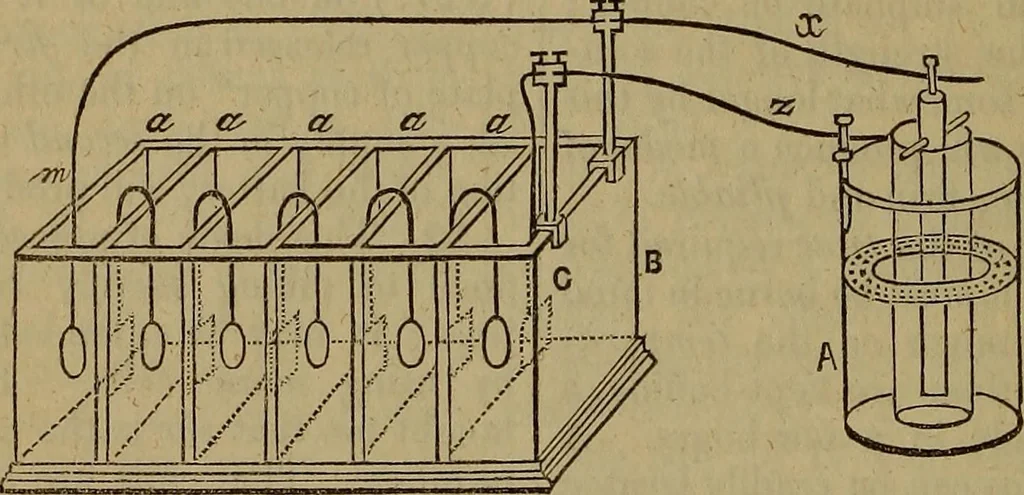

for every ounce of copperreleased from the solution in the generatingcell, an ounce will be deposited on eachmould (page 24); and about an ounce ofzinc will be consumed in effecting this.Whether, therefore, one, (§ 48.) or six,(§52, 53.) or even twenty, moulds beplaced in series, the same quantity… … & & a a a Battery Apparatus Extended.—Fig. 4 is an engraving of Daniells battery,thus connected with a series of six cells, ineach of which is a mould. -4, the battery ;Bj the trough; z, wire connecting cop-per plate C with the negative (§4.) plateof the battery ; x, wire connecting mouldm…
