Piece goods manual : Fabrics described; textile, knit goods, weaving terms, etc., explained ; with notes on the classification of samples (1917)
Blanco, A. E · Shanghai : Statistical department of the Inspectorate general of customs · leaf 25

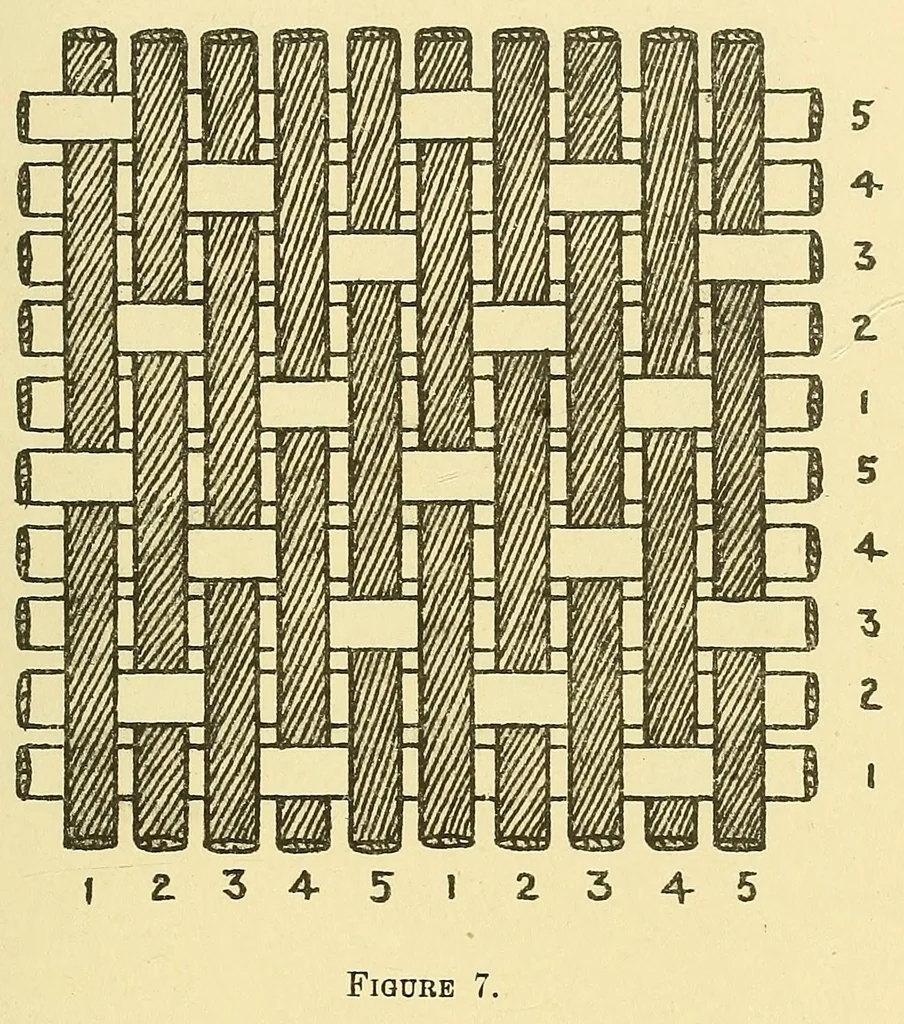

FIVE-END WARP SATEEN WEAVE. This figure illustrates the method of interlacing warp (shaded) and weft threads so as to produce a five-end warp sateen, or satin twill. This weave, in which the warp predominates on the surface, is reversed in Figure 8.
Textile fabrics
