Technology of textile design. Being a practical treatise on the construction and application of weaves for all textile fabrics, with minute reference to the latest inventions for weaving (1888)
Posselt, Emanuel Anthony, 1858- · Philadelphia, Pub. by the author [etc.]; London, S. Low, Marston, Searle & Rivington, limited · leaf 24

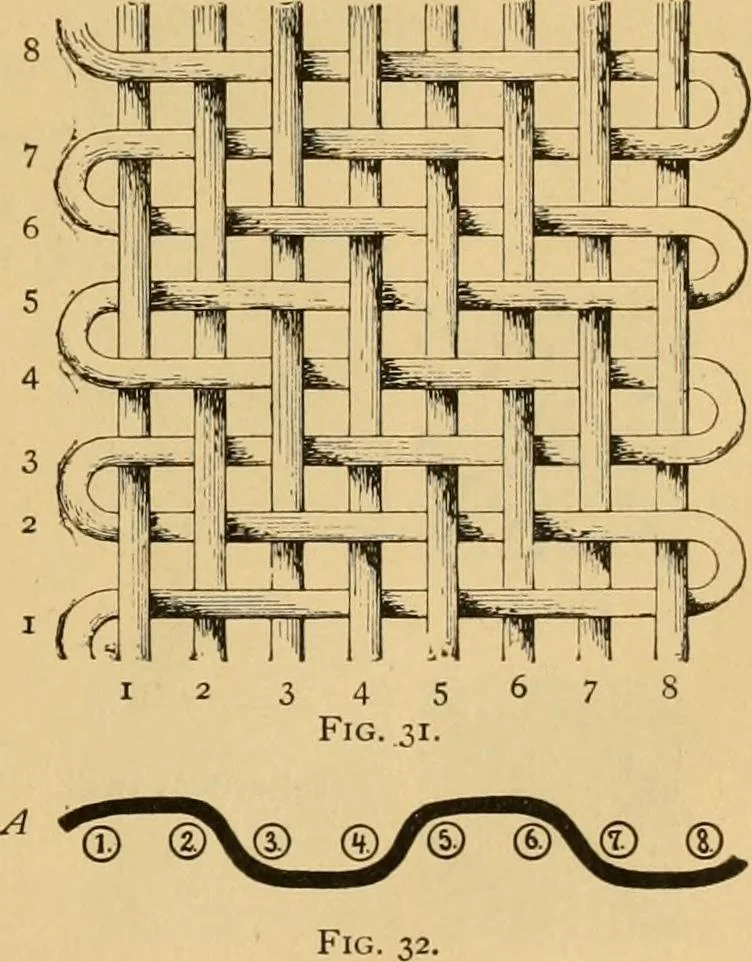

lls.—Examining four, we find 2 kinds of twills possible to be obtained: 1 down3 up («), or 1 up 3 down (u), and 2 up 2 down (e), this being the first even-sided twill obtained. ■■■■■■■■•■■■■■□■■■ Fig. 29. 4-harness twill. 3— u.I Warp for face. nnn*ann*::•:■::::: :■::! :■:;:;:… … Fig. 31 illustrates the fabric obtained with weave Fig. 30. Fig. 32 represents the longitudinal section cut of fabric shown in Fig. 31. A = warp-thread No. 1. ^-Harness Tzvills.—In five-harness we find three different kinds of twills, as follows:Warp Face. Filling Face. 1 down 4 up («), or 1 up4…
Textile design · Textile fabrics
