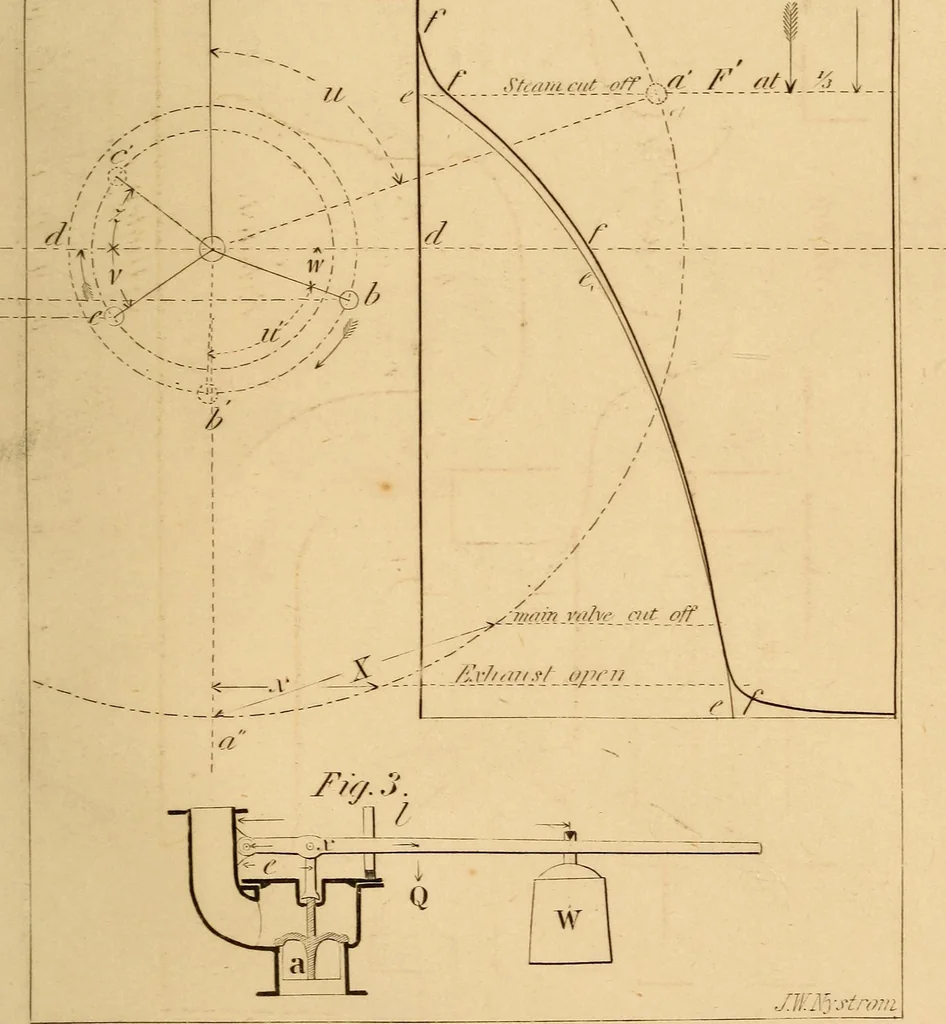

Eccentrics, Phi/rlX. Fig.l Fig. 2. F … Slide Valves. 267 To Find the position of the Crank at the moment theExhaust opens. x = j(ian.W— i(/— &)1 = ^(o-409~^-(5-5 — 5-25)\ =3-27 inches from the centre line. To Find the position of the Crank Fin when the MainValve cuts off the Steam* v 2SL_ 2X18X1 -* - T ~ 6-5 = : 5-727 inches. To…
