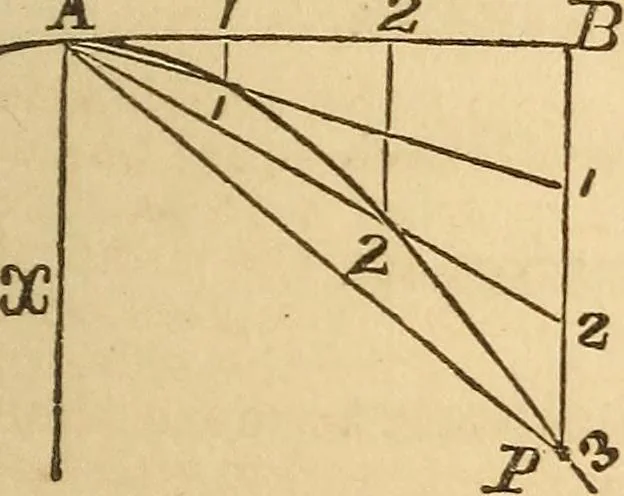

adii and tangents for eachpart, divide the pitch p into an equal numberof equal parts, then the first tangent will beone part, second two parts, third three parts,&c, and so the Evolute is traced. 45. To construct a spiral with compassesand four centres. Given the pitch of the spiral, construct… … 46. To construct a Parabola. Given the vertex A, axis x, and a point P.Draw A B at right angle to x, and B P parallelto a?, divide A B and B P into an equal num-ber of equal parts. From the vertex A drawlines to the divisions on B P, from the divi-sions onAB draw the ordinates parallel to x,the…
