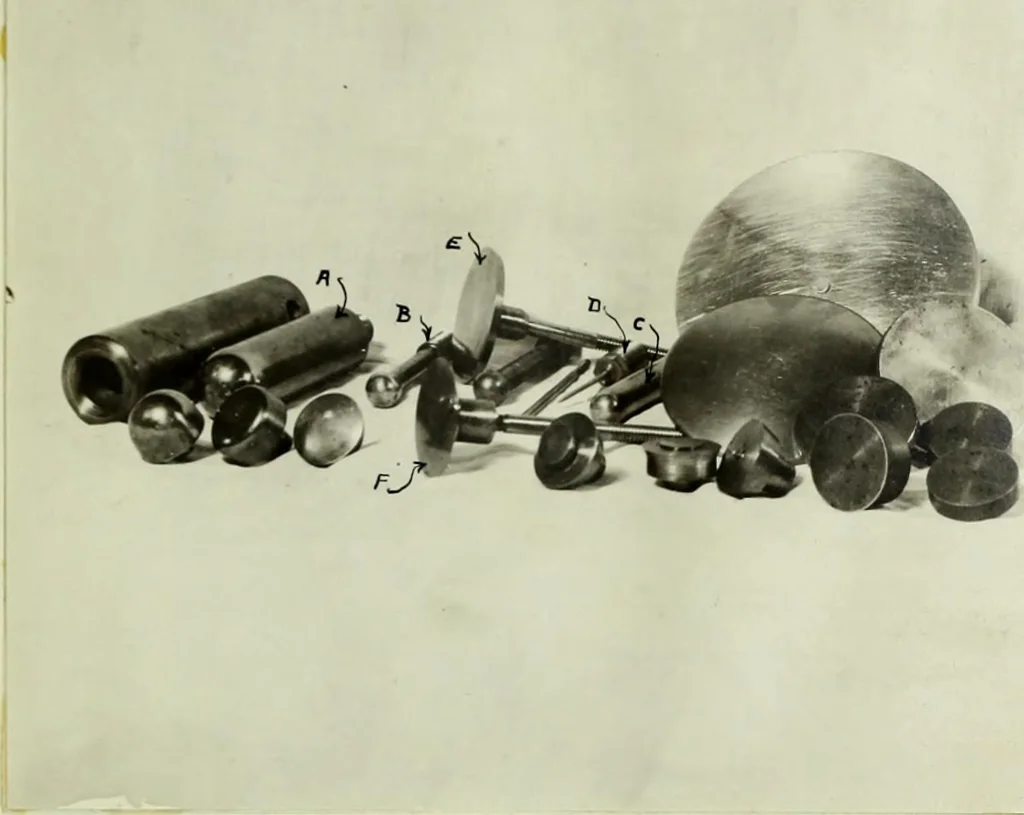

Fi g. 6 . APPARATUS FOR TESTING OIL UNDER PRFSSURF.A Test apparatus.B Oil chamber.C Air chamber.D Pressure connection.E Vacuum connection.F Insulator.G Gage. Fig. 7. FILTRATION APPARATUS FOR MOISTURE TESTSA A square of the blotting paper.B Brass tube in which sample is placed.C Springs for holding… … Fig. P . A PEW ELECTRODES - One of a kind.A 1 inch round nosed.B l/S inch, spheric? 1.C 1/2 inch, round nosed.D l/l6 inch, round nosed. E Electrode for blotting paper - ordinary construction.F Electrode for blotting paper - thin edge. LIBRARYOf THE
