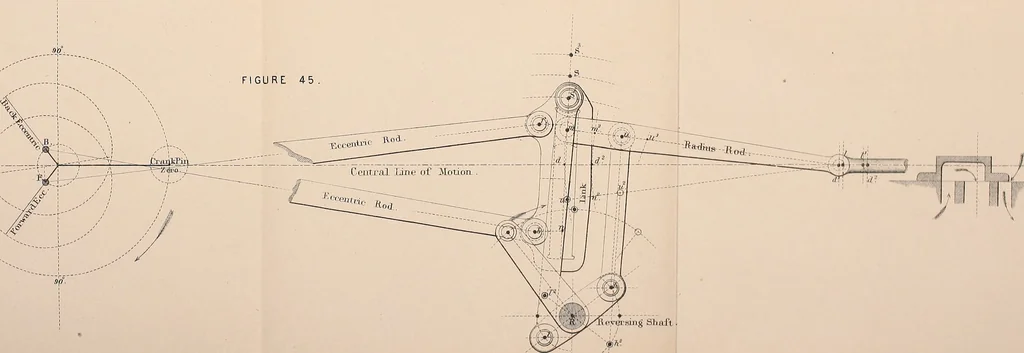

^ It f~ X … STATIONARY LINK. 117 Diameter of piston=18 inches. Stroke=24; Connecting rod=91. Ratio = 1 : 7£. Throw of eccentrics=2f. Forward eccentric angular adv. = 27|°. Rod=57§. Backing eccentric angular adv. =26°. Rod=58. Eccentric rod pins 12£ apart, 3 back of arc. Centre of suspension 1| back of arc, 1}…
