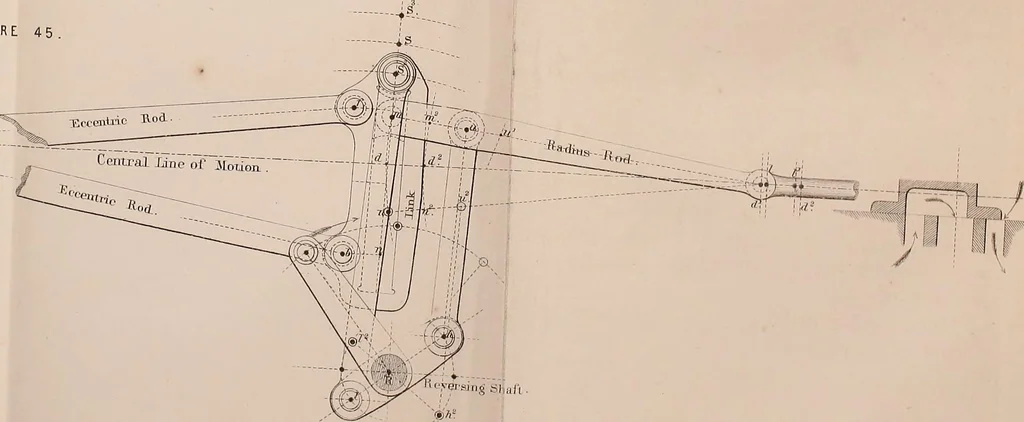

l FIGURE 45 frtiijhlij] __ _- … STATIONARY LINK. 139 Diameter of piston=18 inches. Stroke=24-; Connecting rod=91. Katio=1 : 7J. Throw of eccentrics=2 § . Forward eccentric angular adv. =27J°. Rod=57§. Backing eccentric angular adv. =26°. Rod=58. Eccentric rod pins 12-| apart, 3 back of arc. Centre of suspension 1| back of arc, 1J…
