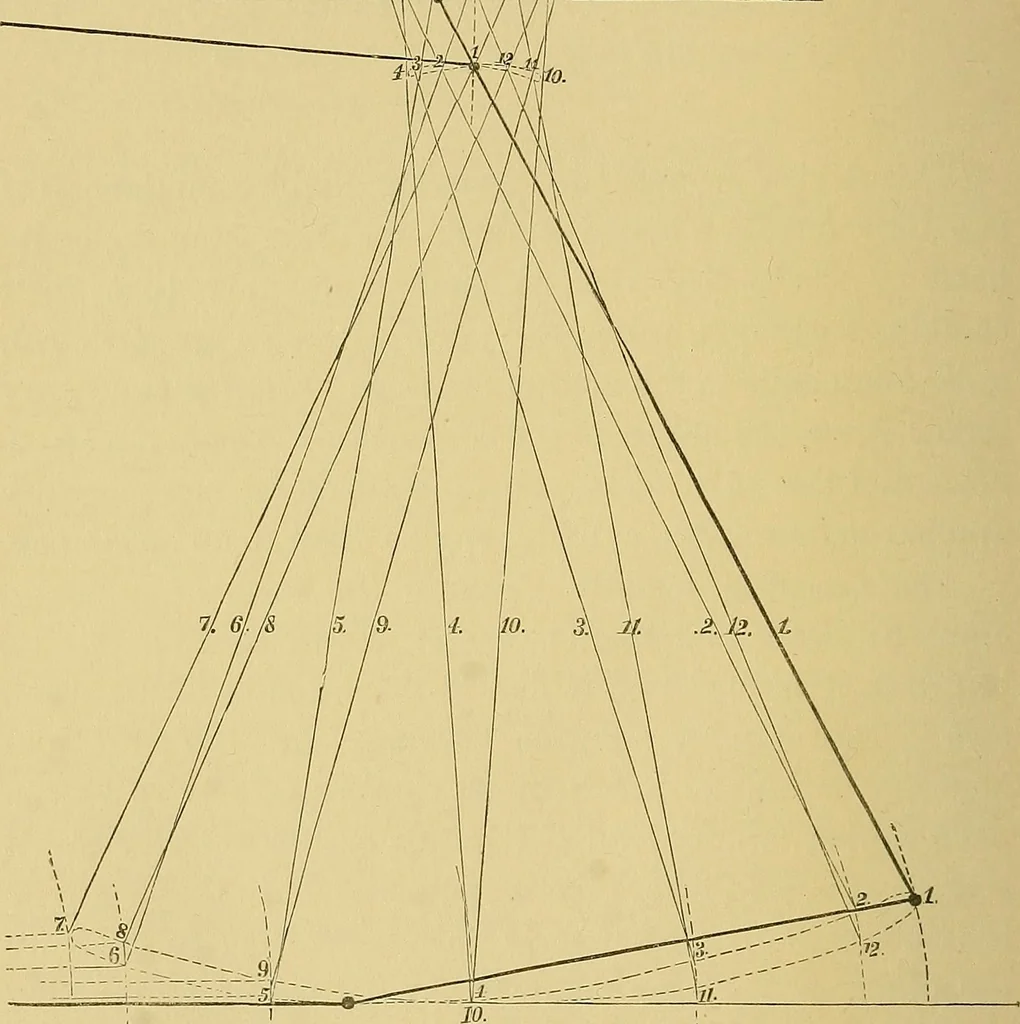

nion barwhich is pinned to one end of the combination lever. Bythe aid of this lever, the eccentric and cross-head motionsare so combined, that the latter virtually restores the angu-lar advance discarded while locating the eccentric, and 122 WAISCHAEET LINK MOTION consequently enables the valve to… … The subjoined dimensions will be found convenient forthe construction of a trial example, in which of course twotemplates should be employed, one to represent the link,the other the combination lever :—
