The elements of the mechanics of materials and of power transmission (1911)
King, William Richard, 1852- · New York, J. Wiley & sons; [etc., etc.] · leaf 188

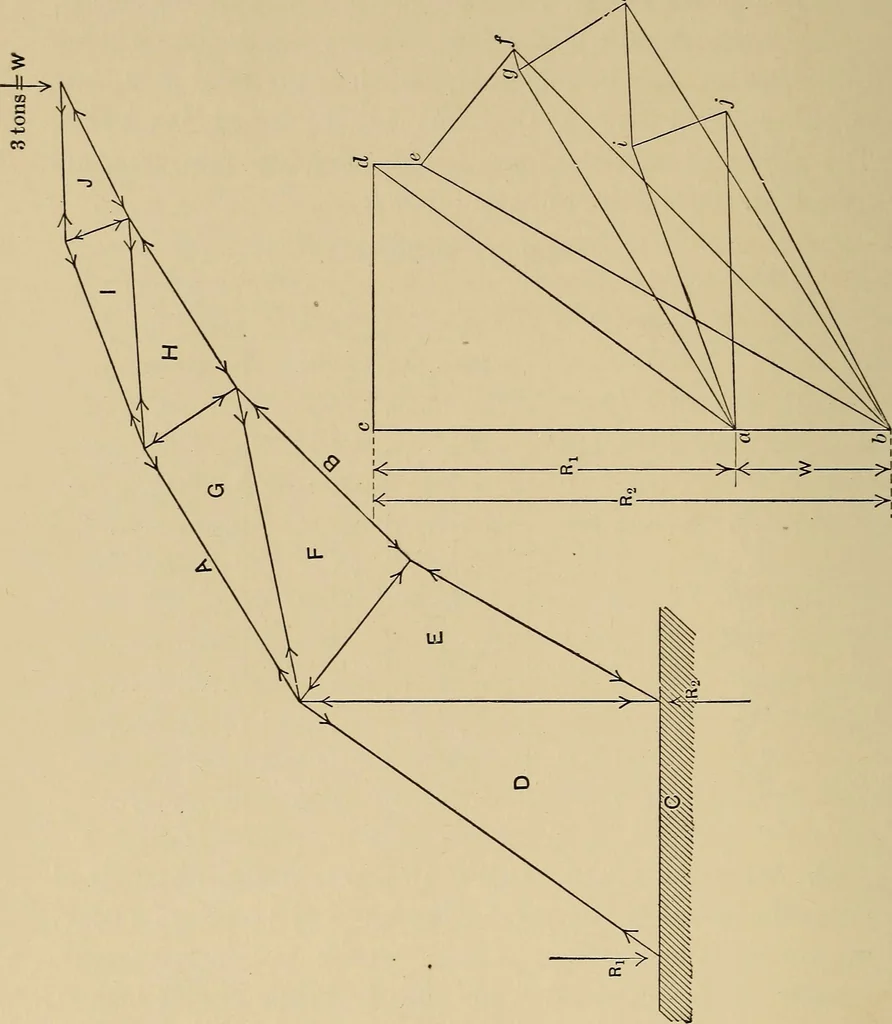

ak,we proceed as follows: Letter the frame diagram, and then to a scale of 0.25 inch =I ton lay off the load line ab three-fourths of an inch in length torepresent the load of 3 tons. From b and a draw parallels toBJ and J A respectively. They intersect atj, giving abj as theforce diagram of the… … reciprocal diagram from which the stress diagram for any jointmay at once be read. Thus, the stress diagram for the jointGHBF is ghbfg. The reaction R2 is, of course, equal to Ri + W. FRAMED STRUCTURES — RECIPROCAL DIAGRAM 179 79. Redundant and Deficient Frames. — The reciprocal dia-grams for all…
Mechanics, Applied · Power transmission
