The practical application of the slide valve and link motion to stationary, portable, locomotive, and marine engines : with new and simple methods for proportioning the parts (1870)
Auchincloss, W. S. (William Stuart), 1842-1928 · New York : Van Nostrand · leaf 117

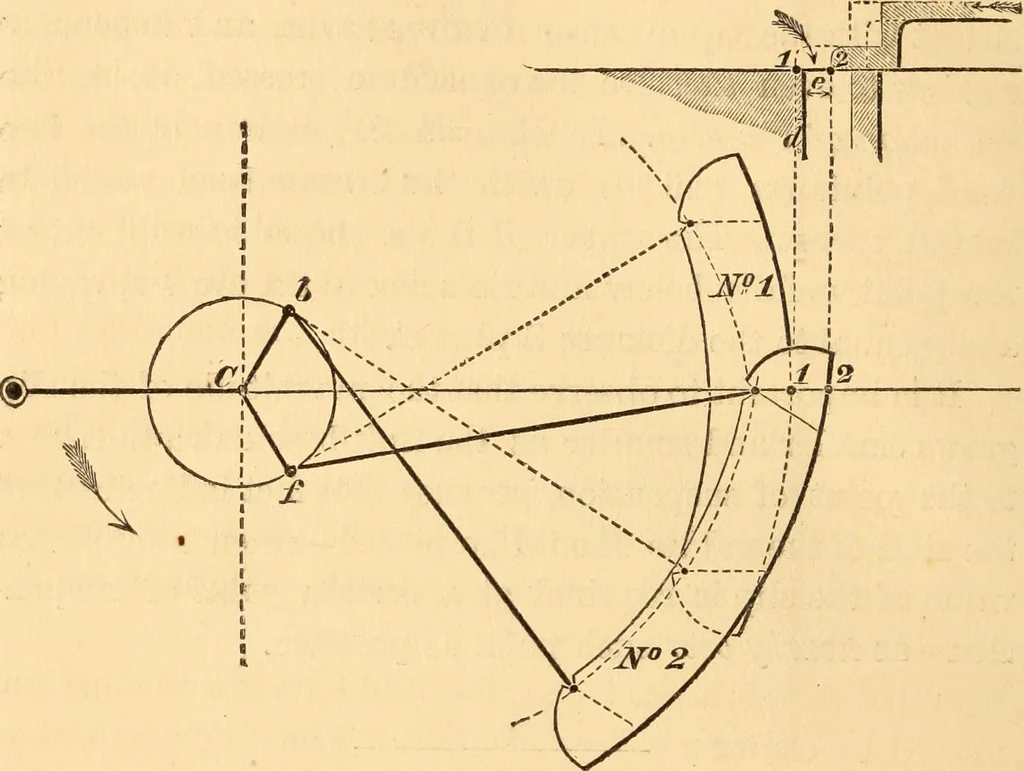

tres lie between the centre of theshaft and the link, while the latter for sake of simplicityhas been made to act directly on the valve. The No. 1position represents the mid gear, and No. 2 the full gearforward of the link. If under these conditions the eccentricrods be crossed as in Fig. 26 the… … Fig. 27.
