Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 384

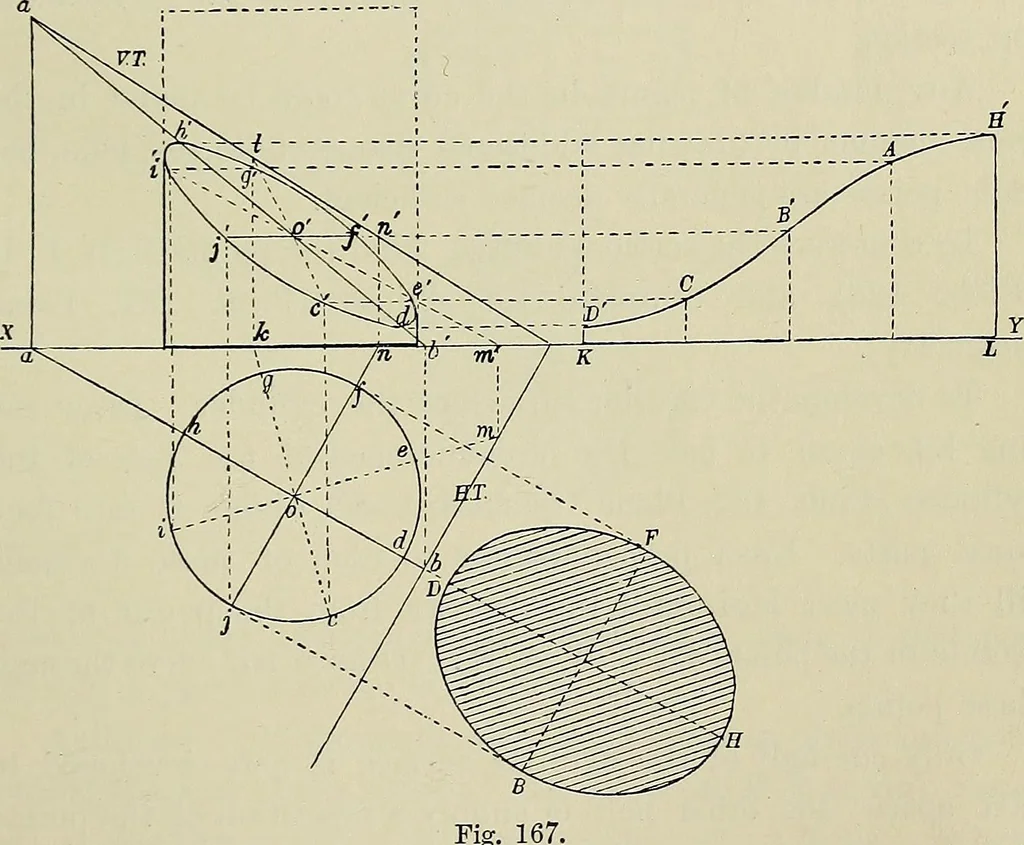

rough these points. SECTIONS OF SOLIDS, ETC. 363 Problem 137. To project the section of a right vertical cylinder; the cuttingplane to he inclined at an angle of 36° with the H.P. and73° with the V.P., htit not intersecting the base. Thissection is an ellipse. Construct the sectional area on the… … cylinder, and perpendicular to the cutting plane. Draw ahperpendicular to the H.T. Draw a projector to a till it meetsthe V.T. in a. Draw a projector to h till it meets XY in h.Join ah\ ah is the V.T. of this V. plane, and aV the line inwhich it intersects the cutting plane. Draw a projector to 0…
Geometrical drawing
