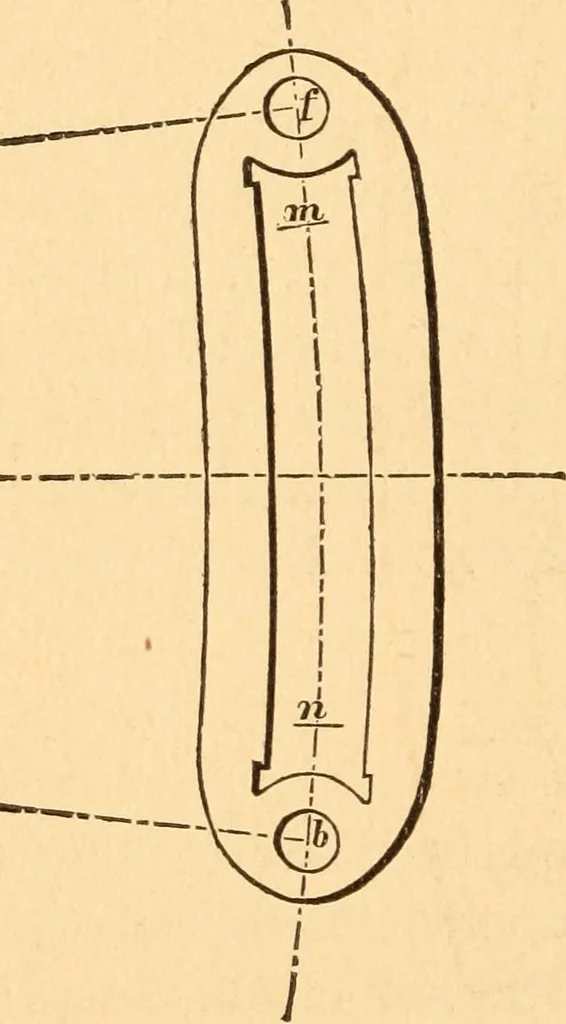

circle varies from 5^ to 7inches, and the working points m and n usually about 3from the pins. The template for this form of link is illus-trated by Fig. 41. This link No. 2 is specially adapted to a motion re-quiring acceleration for any cut-off point beyond the neu-tral position A, and having its… … LINK NO. II. 129 was elevated to the position /, making the distance T lessthan R. If, however, the greatest crank angles had occu-pied this position, the element / would have been removed Fig. 41.
