Model engine construction, with practical instructions to artificers and amateurs (1894)
Alexander, John Henry. [from old catalog] · London, New York, Whittaker · leaf 159

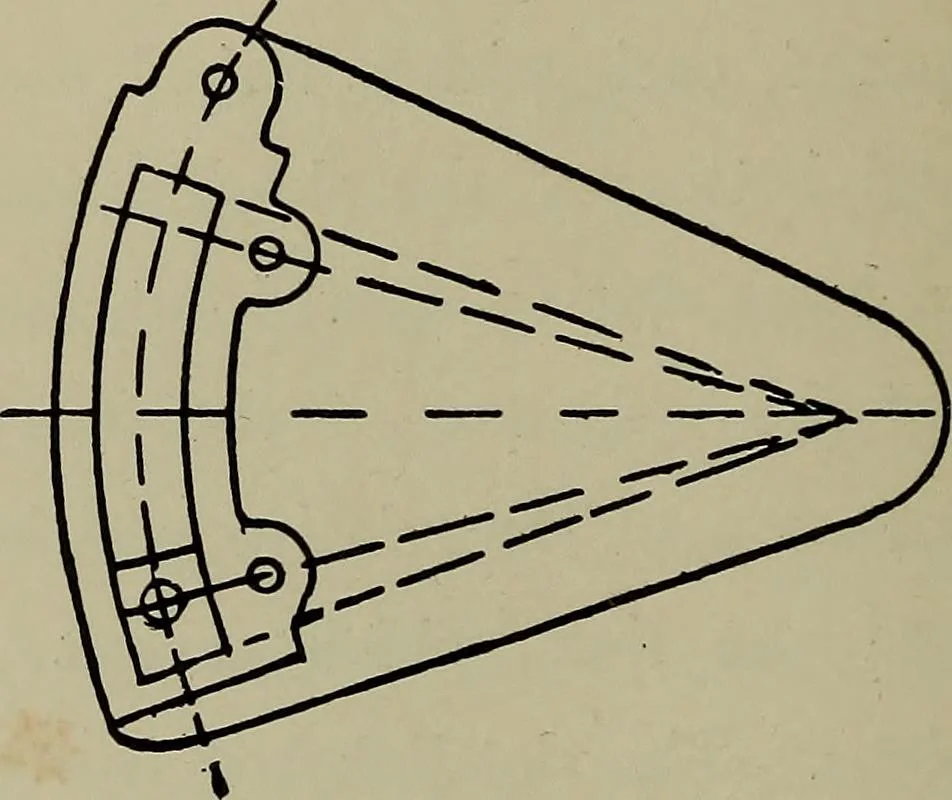

forms the starting-point forsetting out the link. The curved centre line ofthe link is struck to a radius, which equals thedistance from the centre of the axle to the centre 140 MODEL ENGINE CONSTRUCTION. of the valve-spindle cross-head pin, the slide-valvebeing set at mid position/ and kept well… … Fig. 43. Fig. 43). Leave three snugs, two in front near theends, and one projecting at one end for attachingthe lifting-link to; drill and file out the slot cor-rectly, but dont make it too long; mark and drillthe hole for the eccentric-rod forks, through thesnugs, in such a position that when the…
Steam-engines · Machinery
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
