The practical application of the slide valve and link motion to stationary, portable, locomotive, and marine engines : with new and simple methods for proportioning the parts (1870)
Auchincloss, W. S. (William Stuart), 1842-1928 · New York : Van Nostrand · leaf 174

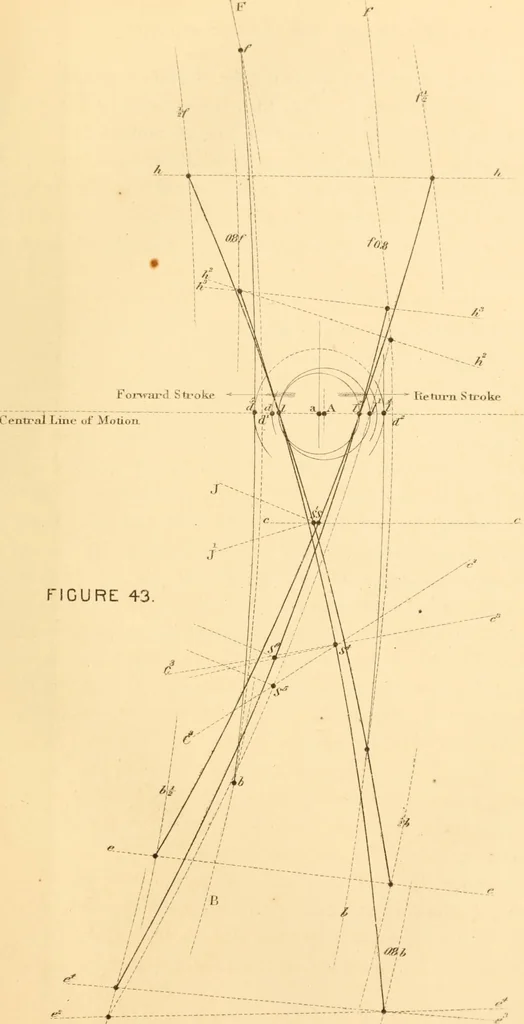

in the mid gear, and from T3g to* f for the returnstroke. The lines of suspension pin motion c, d, <?2, c3 mayconverge, as in the present instance, towards some pointbeyond the link. In such case the tumbling shaft shouldbe placed on the side of the convergence. If, however, the link is… … t>08 APPLICATION OF LINK NO. II. 135 the lower eccentric rod pin, the lines will become e, e\ t\and its tumbling shaft will stand above this line. The judgment of the designer will in every case decideto what extent the lead openings should vary in the fullgears, what inequalities of cut-off are…
Steam-engines
