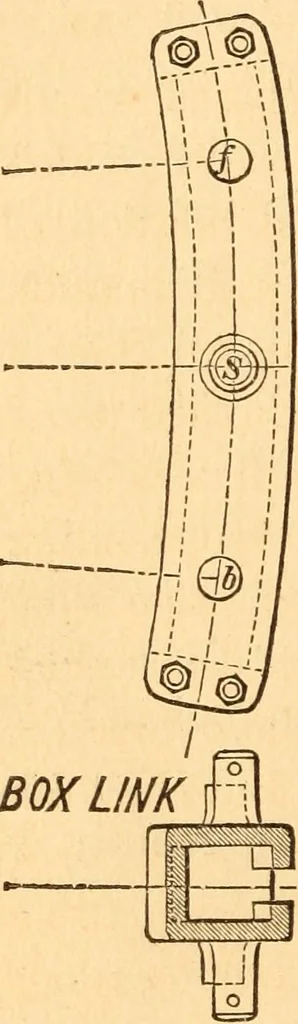

point beyond the link arc, de-termined by placing the link in the \stroke cut-off positions, Nos. 3 and 4, and plotting the centre line^ as in Fig. 32. When, however, the box link is used in place of Link No. 2, the centre of suspension S generally falls within the link arc, or between it and the… … STATIONAEY LINK. This form of connection between the valve and -eccen-trics is specially applicable to those circumstances in whichthe former requires no rocker. The mutual relation ofthe parts will be clearly perceived from an examinationof Fig. 44 which illustrates one of the most…
