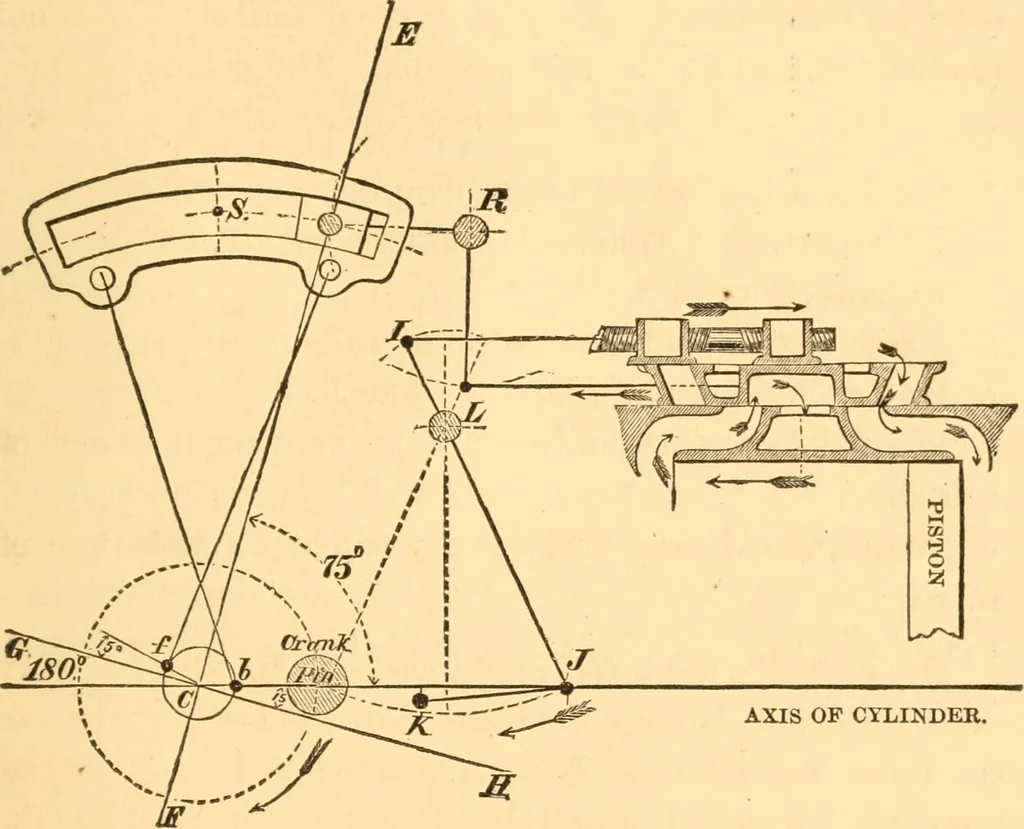

three openings. LINK AND RECIPROCATING MOTION COMBINED. It was observed, while discussing the subject of link mo-tion, that the central line of motion might be inclined at anyangle to that of the piston motion, without affecting thecharacter of the valve action. Fig. 52 illustrates this pecu-… … and Gr H a line at right angles thereto from which are laidoff the 15 degree angular advances of the eccentrics. Theeccentric rods being crossed, the lead of course diminishesfrom the full to the mid gear of the link, but as this is onlyemployed in the full or immediately adjacent gears, the…
