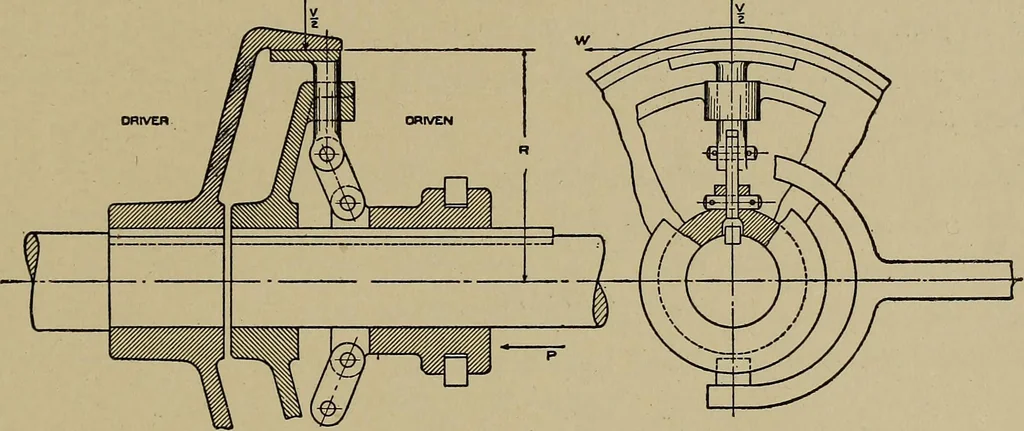

ings are not worked out in operative detail,but merely illustrate the principle, and are drawn in their simplestform. In Fig. 47 the normal pressure is created in the simplest pos-sible way, an absolutely direct push being exerted between the disks,due to the thrust P of the clutch fork. By taking… … Fig. 49. Cylindrical Friction Clutch angle a of Fig. 48 has become zero; and by the toggle-joint action ofthe link pivoted to the clutch collar, the normal force produced maybe very great for a slight thrust P. By careful adjustment of thelength of the link so that the jaw takes hold of the clutch…
