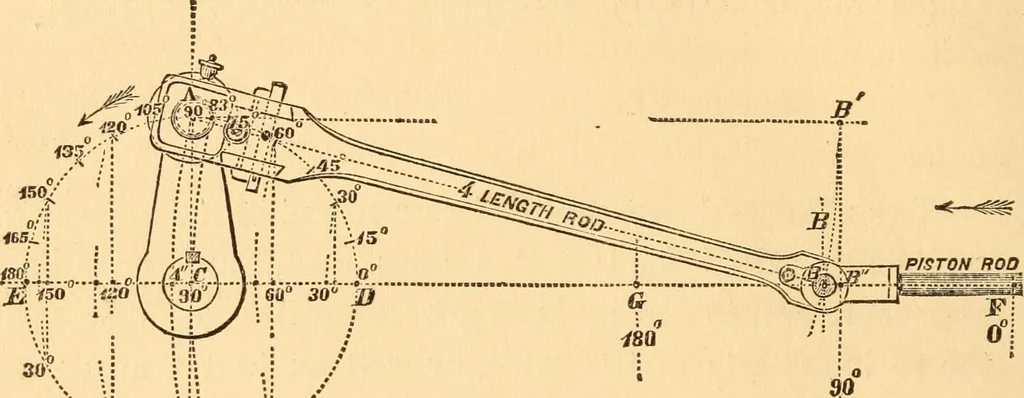

theconnecting rod. In subsequent comparisons of these twoterms, the length of the craiik arm will -always be regarded 56 C K A N K AND PISTON CONNECTION. as the Unit measure and that of the connecting rod as acertain number of times the length of the crank arm. Let the crank arm C A Ibe equal to… … 60 - Us^*- SO 37 B. With B as a centre and A B as radius, describe thearc A A. If the occasion required, it might be readilyproved that A, the point of its intersection with the lineD E, is the same distance from C that B is from B. Placingthe crank in other positions—as at 30°, 60°, 120° and so…
