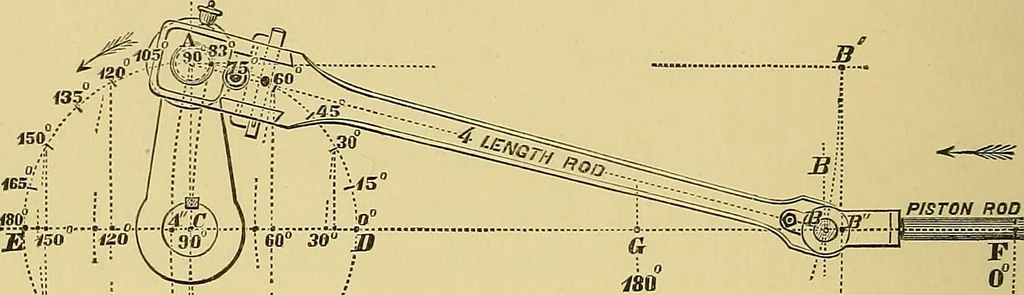

arm and theconnecting rod. In subsequent comparisons of these twoterms, the length of the crank arm will always be regarded 60 CRANK AND PISTON CONNECTION. as the Unit measure and that of the connecting rod as acertain number of times the length of the crank arm. Let the crank arm C A be equal to… … &° iX-o--&°0 90 B. With B as a centre and A B as radius, describe thearc A A. If the occasion required, it might be readilyproved that A, the point of its intersection with the lineD E, is the same distance from C that B is from B. Placingthe crank in other positions—as at 30°, 60°, 120°…
